Trudoor DL2 Grade-2 Single Cylinder Deadbolt Lock

$41.08
Usually Ships:  Same Day
  • Meets and exceeds ANSI A156.2 Grade 2 standards
  • Single cylinder x inside turn
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

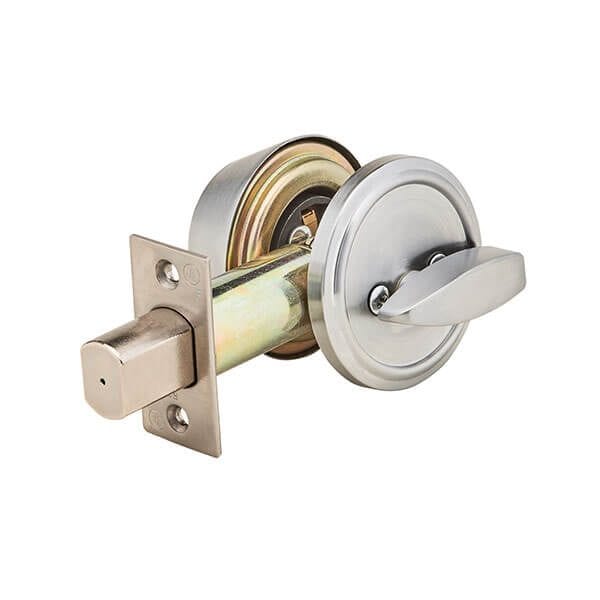

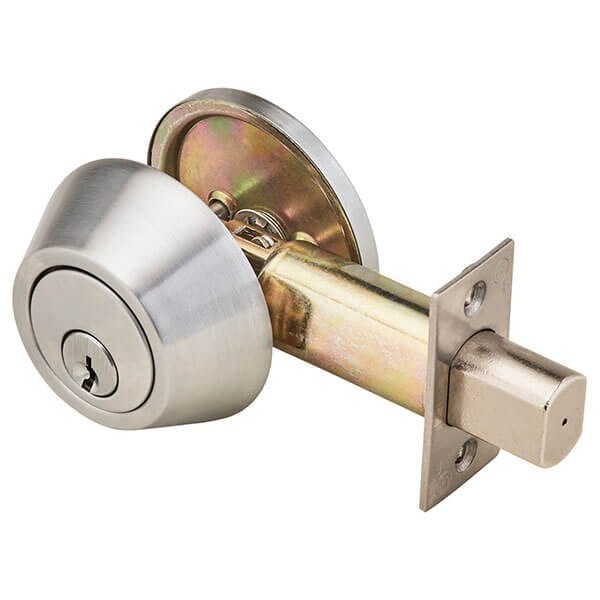

Trudoor DL2 Grade-2 Single Cylinder Deadbolt, 2-3/4" Backset

DL2 Series deadbolt locks are an ideal choice for medium-duty commercial applications when added security is needed.

  • ANSI E21522 - Single cylinder outside, thumbturn inside
  • Meets & exceeds ANSI A156.2, Grade 2 standards
  • For use with interior or exterior metal and wood doors
  • ADA compliant thumb turn
  • 3 hour fire-rated (UL Listed)

Cross Reference

The DL2 can be specified as a value engineered substitute and/or replacement for: Arrow E61, Cal-Royal ULT360, Corbin Russwin DL2213, Design Hardware D2-S, Dorma DB660, Falcon D241, Hager 3215, Sargent 475, Schlage B560P, Yale D212

ANSI Function

E21522
ANSI Grade

Meets & exceeds ANSI – A156.2 Grade 2 standards
Backset

2-3/4"
Bolt

1" throw bolt 1-1/8" x 2-1/4" square corner face plate
Brand

Trudoor
Cylinder Format

Conventional
Cylinder & Keys

6-pin conventional keyed different with 2 keys
Deadbolt Type

Single Cylinder
Door Thickness

1-3/4"
Finish

BlackSatin Chrome
Finishes

US26D (626) Satin Chrome622 Matte Black
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Keyway

Schlage C Keyway
Strike

1-1/8” x 2-3/4“ square corner
Usage

Medium Duty
