Product Overview

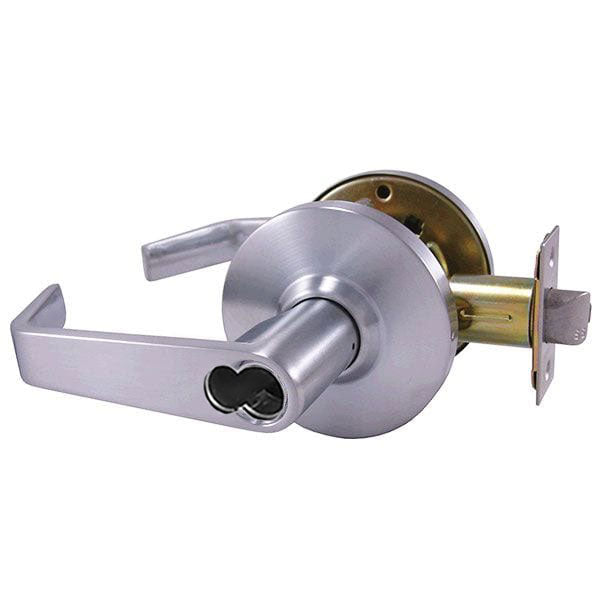

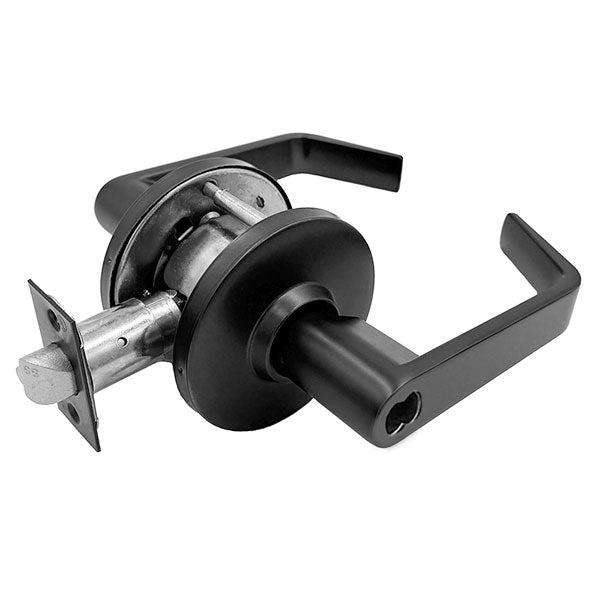

Design Hardware J-86IC-F Lever Lockset, Storeroom Function, Grade-2, (F) Flat Lever Design, Small Format Interchangeable Core Prep
The J Series is a lock for the more common application. This lock offers a fixed lever mechanism yet still has removable through bolts and a large 3-3/8" rosette.
J-86 Storeroom – ANSI Function F86 – Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.
- SFIC = Small Format Interchangeable Core (Core Sold Separately)
- Best for medium to high-traffic
- Designed for fast and easy installation
- Meets ANSI - A156.2, Series 4000, Grade 2 Standards
- Lock Chassis: Steel, Zinc dichromated chassis for Corrosion Resistance
- Trim : 5″ Solid zinc diecast levers, 3 3/8″ wrought brass roses
- Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag
- 2 3/4″ backset std. with 1 1/8″ x 2 1/4″ latchface
- Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions & exit latch
| Brand |
Design Hardware |
|---|---|
| Finishes |
US19 Matte Black, US26D (626) Satin Chrome |
| Usage |
Medium Duty |
| ANSI Grade |
Meets & Exceeds ANSI – A156.2, Series 4000, Grade-2 Standards |
| Lock Function |
Storeroom |
| Fire Rating |
UL Listed for “A” Label 3 Hour Fire Doors |
| ADA Compliance |
Meets ADA requirements - A117.1 Accessibility Code |
| Backset |
2-3/4" |
| Strike |
4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| Handing |
Non Handed – Completely Reversible |
| Fasteners |
Combination screws for wood or metal doors & frames |
| Cylinder Format |
Small Format Interchangeable Core (SFIC) |
| Latch |
1/2” throw, deadlocking - 1-1/8" x 2-1/4" face |
| Lever Design |
F - Flat |
