Product Overview

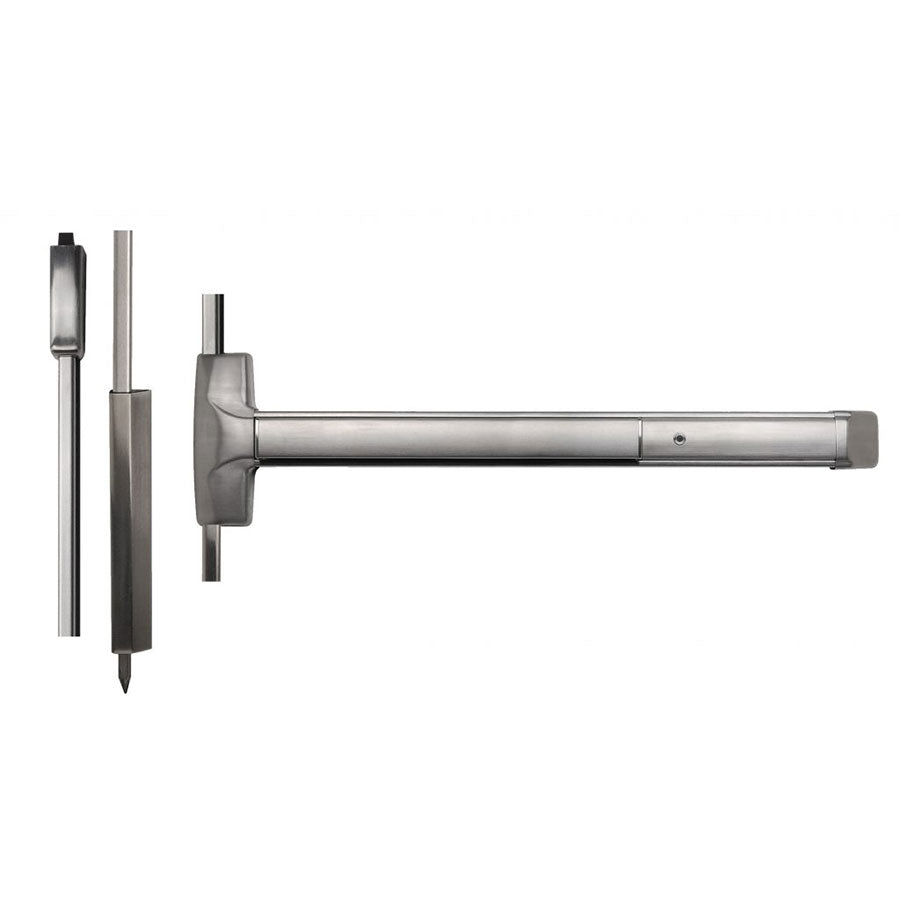

Detex 20 Series Surface Vertical Rod Exit Device, Exit Only
The 20 Series surface vertical rod exit device is super-heavy-duty panic and fire exit hardware for use on all types of double doors without a mullion. All 20 series SVR exit devices are supplied with top and bottom rod covers and an ADA compliant ramped bottom bolt cover. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.
- Exit Only (trim sold separately)
- All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
- Tested beyond 1,000,000 cycles – Twice the cycling required for Grade 1 UL testing
- Stainless steel deadlocking top latch
- Tough and durable design for years of trouble-free service in high-use, high-abuse environments
- Handed – field reversible
- Field sizeable
| ANSI/BHMA Standard |
ANSI/BHMA certified A156.3 Grade-1 |
|---|---|
| Brand |
Detex |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Device Type |
Surface Rod Device |
| Dogging Feature |
HD - Hex Dogging |
| Door Thickness |
1-3/4" to 2-1/4" |
| Finish |
Dark BronzeBlackStainless Steel |
| Finishes |
630 Satin Stainless Steel695 Dark Bronze693 Black |
| Fire Rating |
Non-Fire-Rated |
| Handing |
Non-Handed |
| Latchbolt |
Stainless steel deadlocking top latch Hardened steel bottom drop bolt with dust proof strike |
| Minimum Stile Width |
4-1/2" with standard 97 strike |
| Size |
36" x 84"48" x 84" |
| Stile Type |
Wide (Standard) |
| Strike |
97 strike standard |
| Usage |
Heavy Duty |
