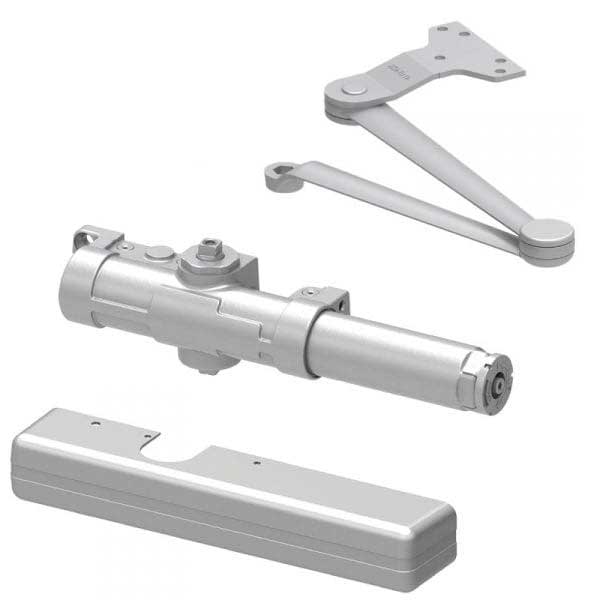

LCN 1461 EDA Door Closer with Extra Heavy Duty Parallel Arm

$324.84
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.4 Grade 1 Certified, Made in USA
  • Features forged, solid steel arm for potentially abusive installations
  • Non-handed, parallel arm (PUSH SIDE) mount

Available Options:

Clear

Product Overview

LCN 1461 EDA Grade-1 Door Closer, Cast Iron Body, Extra Heavy Duty Arm

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. It installs quickly, accurately and offers a variety of options. It is cUL and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty. LCN peel-n-stick templates ensure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of spring force adjustments.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-1/4" diameter piston
  • Heat-treated steel pinion journal

Quality and durability

  • Includes 1460-3077EDA Extra duty arm
  • All-weather fluid
  • LCN Patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Universal non-handed
  • Peel-n-stick template and standard slim line plastic cover
  • Non-sized (1-6) cylinder is adjustable for interior doors to 5'0" and exterior doors to 4'0"

Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 – Dark Bronze
  • BLK, BHMA 693 – Black
  • BRASS, BHMA 696 – Brass
  • LTBRZ, BHMA 691 – Light Bronze
Body Construction

Cast Iron Body
Brand

LCN
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Certifications

Grade 1 - ANSI A156.4 UL 10C ADA 100 Hour Salt Spray Meets BAA - Buy American Act
Cover

Slim Cover Standard (Full Cover Optional)
Cover Type

Full CoverStandard Slim Cover
Door Application

Hollow Metal Wood or Aluminum
Fasteners

Self Reaming and Tapping Screws (SRT)
Finish

Dark BronzeBrassBlackAluminumLight Bronze
Finishes

695 Dark Bronze691 Light Bronze693 Black696 Brass689 Aluminum
Fire Rating

UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
Fluid

All Weather Fluid
Handing

Non-Handed
Mounting Options

Parallel Arm (Push Side)
Special Feature

Extra Duty Parallel Arm
Spring Size

Adjustable Spring Size 1-6
Templating (Hole Pattern)

1" x 7-1/2"
Usage

Medium Duty
Warranty

30 Years
