LCN

LCN 6440XP COMPACT Low Energy Auto Operator Module and Closer Kit

$1,358.20
This item ships FREE! Usually Ships:  1-2 Business Days
  • Includes 4040XP cylinder and gearmotor assembly
  • Pull and push side mounting options
  • For doors up to 185 lbs.

Available Options:

Clear

Product Overview

LCN 6440XP COMPACT Low Energy Auto Operator, Gearmotor Assembly, Mounting Plate, and Screws, Plastic Cover, Power Supply, Door loop, 30' Copper wire, Includes 4040XP-RwPA Cylinder

A simpler solution for touchless access and accessible operation

The LCN 6400 COMPACT™ Series low-energy operator is a simple and cost-effective solution that enables facilities to automate more openings for touchless access and accessible operation. The electrified module connects with a mounting plate and just four screws and drives open the mechanical closer. The simplicity of this solution reduces the cost, labor, and complexity required to automate an opening.

  • 24V input for safe door-mount applications
  • Configurable power input to allow for simple wall plug-in or external power supply
  • Compact user interface for electronic feature adjustments
  • Adjustments via mechanical closer to meet closing force preferences
  • Certified to UL 10C, UL 325 and UL 228
  • Certified to ANSI Standard A156.19
  • Compliant with ANSI Standard A117.1

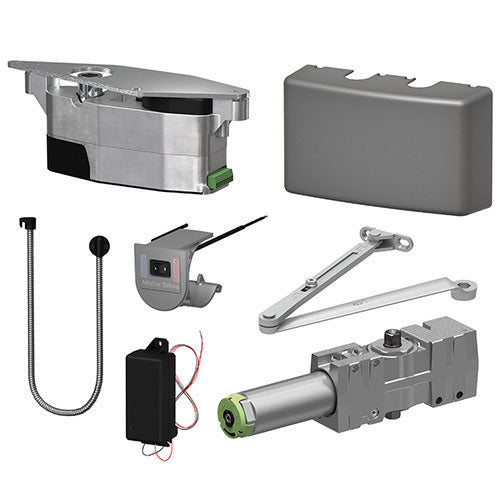

Components Included

  • 4040XP Standard cylinder
  • RwPA arm
  • Gearmotor assembly, mounting plate, and screws
  • Cover and switch insert
  • Wall adapter
  • Door loop
  • 30 ft of copper wire

Compatibility

  • Interior openings only
  • Any hardwired actuator
  • Any RF receiver and actuator/transmitter in the LCN 8310 Series
ANSI/BHMA Standard

ANSI/BHMA A156.19 certified
Brand

LCN
Door Application

Interior metal and wood doors
Door Weight

up to 185 lbs.
Finish

AluminumDark Bronze
Finishes

695 Dark Bronze689 Aluminum
Handing

Non-Handed
Mounting

Surface Mount - Pull SideSurface Mount - Push Side
Usage

Medium Duty
