Norton 8501H Grade 1 Tri Mount Friction Hold Open Door Closer, Push or Pull Side, Double Lever Arm Regular, Adjustable Size 1 to 6, Plastic Cover

The 8000 Series Door Closers offer the ideal combination of appearance, reliability, and durability in today's market. With features such as staked valves, precise valve adjustment, and a complete range of arm and cover options, this closer can meet virtually any application challenge.

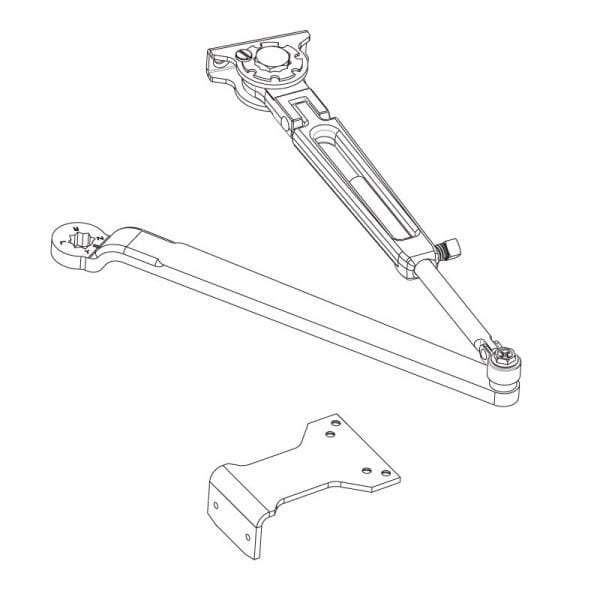

  • Includes 7701-8 friction hold-open arm and 1628H soffit adapter plate
  • Adjustable spring sizes 1 through

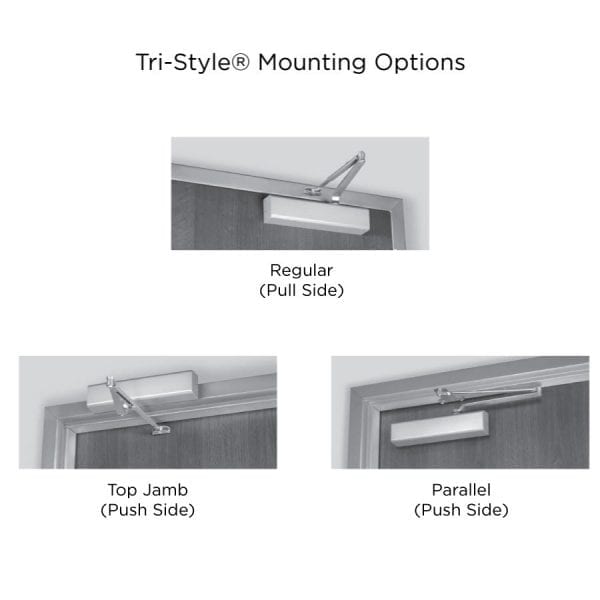

  • Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Non-handed
  • Staked valves
  • Cast aluminum closer body
ANSI/BHMA Standard

ANSI/BHMA A156.4 Grade 1 certified

Body Construction

Cast Aluminum Body

Brand

Norton

Cover

Full Cover

Door Applications

Hollow Metal Wood or Aluminum

Finish

BlackDark BronzeWhiteAluminumLight BronzeBrass

Finishes

WSP White Suede Powder Coat691 Light Bronze690 Statuary Bronze696 BrassBSP Black Suede Powder Coat689 Aluminum

Handing

Non-Handed

Mounting Options

Top Jamb (Push Side)Regular (Pull Side)Parallel Arm (Push Side)

Spring Size

Adjustable Spring Size 1-6

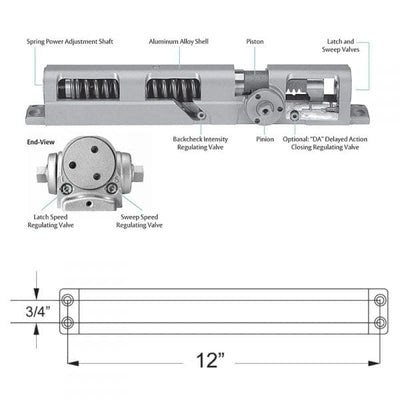

Templating (Hole Pattern)

3/4" x 12"

Usage

Medium Duty

Warranty

30 Years

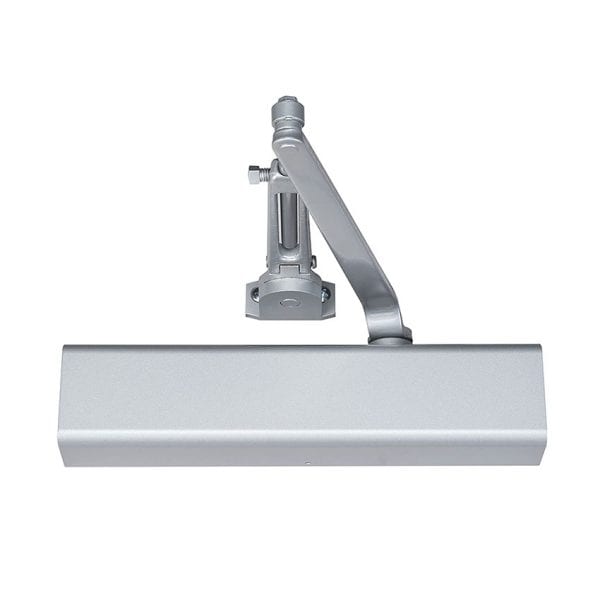

8501H Door Closer with Hold Open Arm
Norton 8501H Door Closer with Hold Open Arm
