Pemko

Pemko 303_S (PG) Standard Perimeter Gasketing Weatherstrip with Silicone Insert

$57.94
Usually Ships:  1-2 Business Days
  • Use on door frames to seal top and sides of door
  • Seals against smoke, fire, air, and weather
  • #6 x 5/8" Pan head sheet metal screws furnished

Available Options:

Clear

Product Overview

Pemko 303_S (PG) Standard Perimeter Gasketing with Silicone Insert

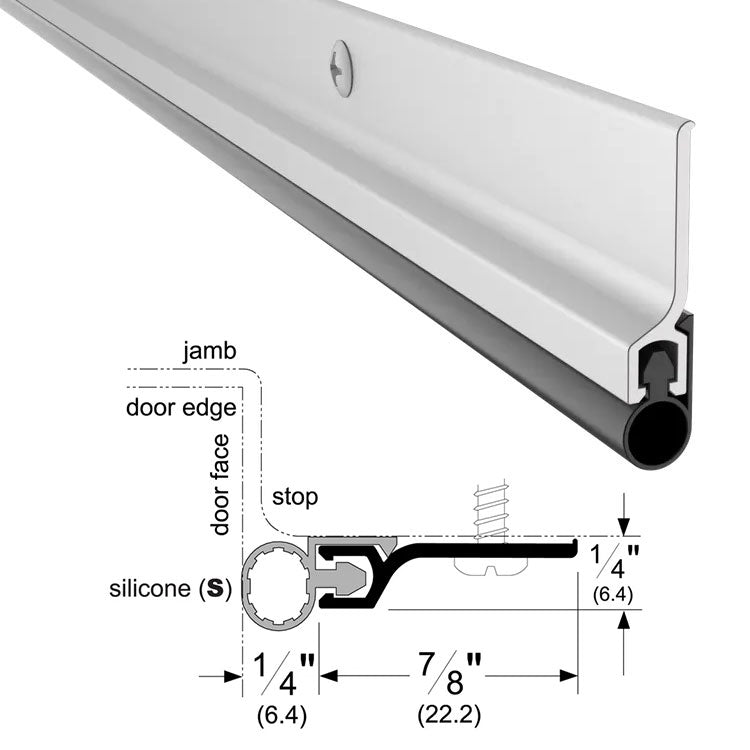

Designed to be applied to the “stop” perimeter of the door frame. Includes a silicone seal with aluminum framing. The silicone seal compresses against the door, to create a tight weatherproof seal.

Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.

  • This perimeter gasketing is supplied with a Silicone ("S") insert
  • Stainless steel fasteners are standard
  • Available Sizes: 36″ x 84″ Set, *36″ x 96″ Set, 48" x 84" Set, 72″ x 84″ Set, *72" x 96" Set, *96" x 96" Set, and *96″ Single Piece
  • Full-Length; Field-Cut to Size

*excessive length shipping fee applies

Finishes

  • 303AS: A - Mill Finish Aluminum Aluminum with Silicone insert
  • 303BSPS: BSP - Black Suede Powder Coat Aluminum with Silicone insert
  • 303DS: D - Dark Bronze Anodized Aluminum with Silicone insert
  • 303GS: G - Gold Anodized Aluminum with Silicone insert
  • 303WSPS: WSP - White Suede Powder Coat Aluminum with Silicone insert

Ratings

  •  Air Infiltration Tested
  •  BHMA Certified
  •  Smoke Tested - UL1784
  •  Fire Rated - UL10C - Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

Brand

Pemko
Finish

AluminumBlackDark BronzeGoldWhite
Finishes

BSP Black Suede Powder CoatA - Mill Finish AluminumD – Dark Bronze Anodized AluminumWSP White Suede Powder CoatG - Gold Anodized Aluminum
Fire Rating

Fire Rated - UL10C - Positive Pressure
Gasket Type

Screw-on
Insert/Seal Type

Silicone
Size

36" x 84"96" x 96"48" x 84"72" x 96"96"72" x 84"36" x 96"
