Schlage

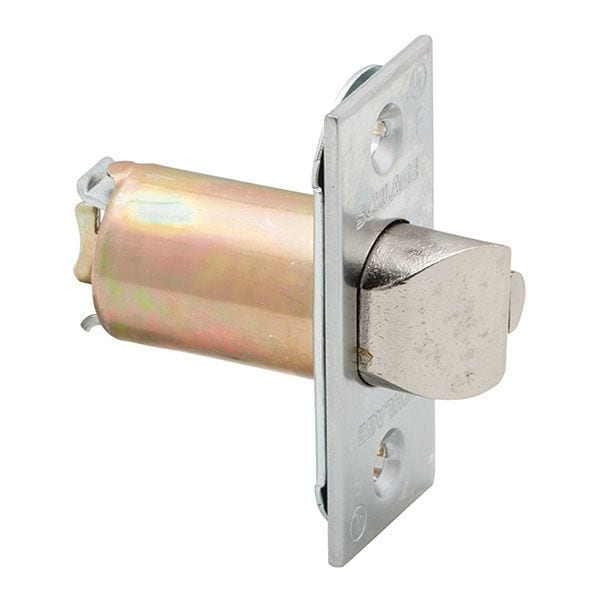

Schlage 47273624 2-3/8" Backset Deadlatch for ALX Series (1" x 2-1/4")

$53.02
Usually Ships:  1-2 Business Days
  • Stainless steel latchbolt
  • 1" x 2-1/4" square corner
  • 2-3/8" backset deadlatch

Available Options:

Clear

Product Overview

For use with Schlage ALX Series (Entry, Office, Storeroom, and Classroom Functions)

Schlage ALX Series latches accommodate flat or beveled edge doors, and are finished to match the lock trim. All ALX Series latches have 1/2" throw and 1" housings. Latches will accommodate 1" or 7/8" door prep diameters.

  • 1" x 2-1/4" square corner faceplate
  • 1" housing diameter
  • 2-3/8" backset deadlatch
  • 1/2" throw
  • Lock function: Non-restoring
  • Configured lock specification part number: 47267052
  • Sold separately part number: 47273624

Not available in 619 satin nickel or 626AM satin chrome antimicrobial finishes, use 626 Satin Chrome latch. Not available in 643e aged bronze finish, use 613 oil rubbed bronze latch.

Backset

2-3/8"
Brand

Schlage
Finish

Satin BrassSatin ChromeBlackDark BronzeSatin BronzeBright ChromeBright Brass
Finishes

605 Bright Brass625 Bright Chrome622 Matte Black626 Satin Chrome613 Oil Rubbed Bronze606 Satin Brass612 Satin Bronze
Fire Rating

UL Listed
Latch

1/2" throw - 1" x 2-1/4" face
Part Type

DeadLatch
