Product Overview

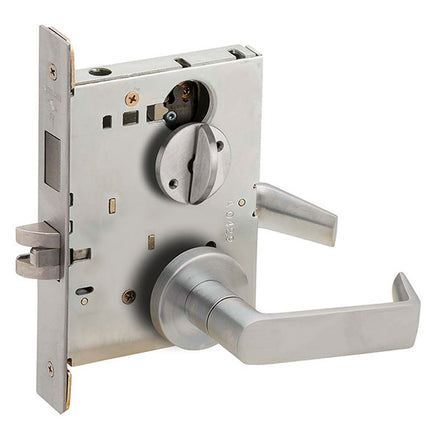

Schlage L9440 06A 626 Grade 1 Privacy with Deadbolt Mortise Lock, 06 Lever, A Rose, Satin Chrome Finish, Field Reversible
Nothing is tougher. The L Series is built to withstand the rigors of daily use without fail and is among the most durable, dependable and intelligent family of products on the market today. When you choose a Schlage lock you can have confidence you’ve chosen a solution that will provide protection at the most critical moments.
L Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

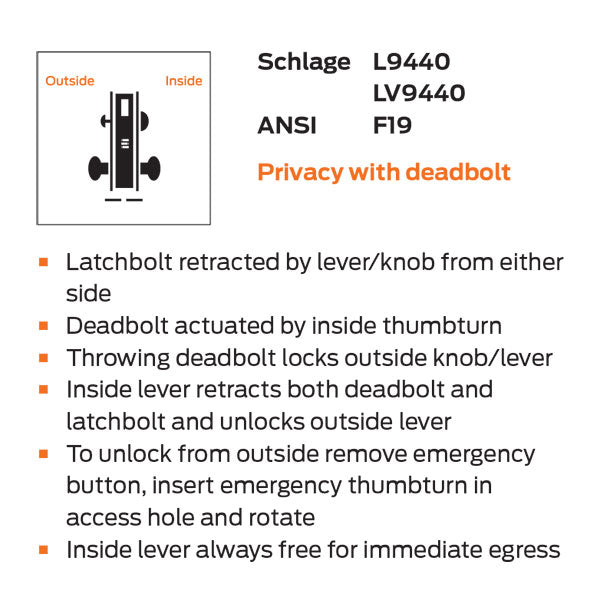

ANSI Function F19 - Privacy with Deadbolt – Latchbolt retracted by lever/knob from either side. Deadbolt actuated by inside thumbturn. Throwing deadbolt locks outside knob/lever. Inside lever retracts both deadbolt and latchbolt and unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate. Inside lever always free for immediate egress
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- UL listed for 3-hour fire door
- Meet ADA requirements
| ANSI Function |
F19 |
|---|---|
| ANSI Grade |
ANSI A156.13 Series 1000 Operational Grade 1 and Security Grade 1 |
| Armored Front |
1-1/4" x 8" x 7/32" standard |
| Backset |
2-3/4" |
| Brand |
Schlage |
| Case |
Steel case and parts are corrosion resistant |
| Case Size |
4-7⁄16" x 6-1⁄16" x 1" |
| Door Thickness |
1-3/4" |
| Finish |
Satin ChromeStainless Steel |
| Finishes |
626 Satin Chrome630 Satin Stainless Steel |
| Fire Rating |
“A” Label 3 Hour Fire Doors UL10C Positive Pressure Rated |
| Handing |
Field-reversible handing without opening lock case |

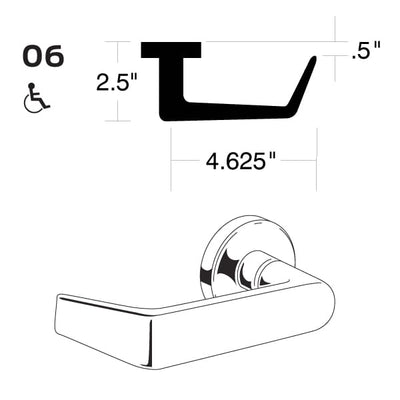

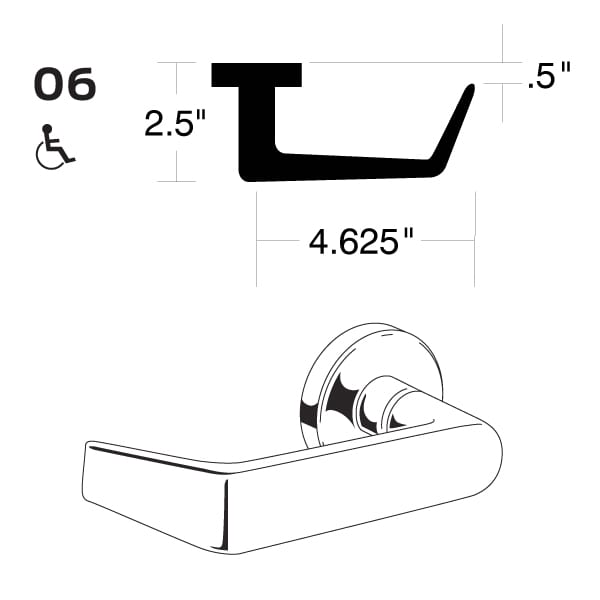

| Lever Design |
06A |
| Lock Function |
Privacy |
| Strike |
ANSI curved lip strike 1-1/4" x 4-7/8" x 13/16" lip to center with dust box standard |
| Usage |
Heavy Duty |
