Trudoor CL1-84 Heavy-Duty Classroom Lever Lock

$135.51
Usually Ships:  Same Day
  • Meets ANSI Grade 1 standards
  • Lock/unlock by key, inside always unlocked
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

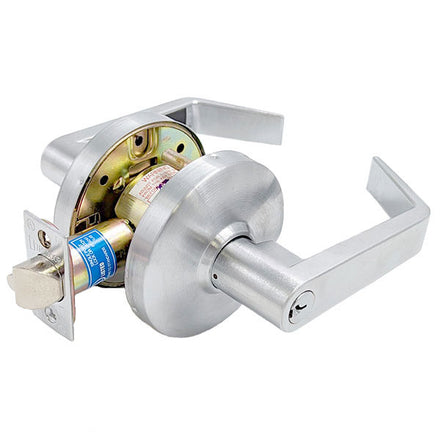

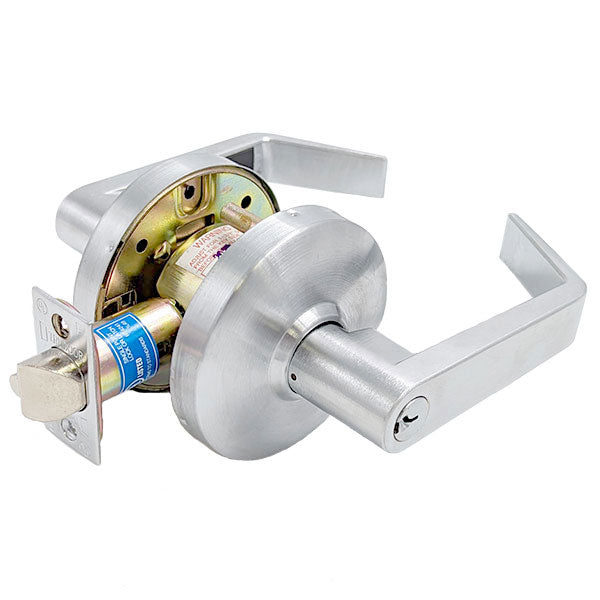

Trudoor CL1-84, CL1 Series Grade-1 Cylindrical Lever Lock, Classroom Function, Heavy-Duty


Trudoor® CL1 Series cylindrical locks are an ideal choice for a wide variety of heavy-duty applications where consistent reliability and easy installation are required at an economical price. CL1 locks are for use on exterior or interior doors in office buildings, schools, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial, institutional, or industrial buildings.
  • Quality construction and reliability at an affordable price
  • Steel, zinc dichromated chassis for corrosion resistance with precision cast steel retractor
  • Clutch mechanism on locking functions, free turning lever in locked position without retracting latch for vandal resistance
  • Non-handed and reversible for easy installation
  • Fixed thru-bolts for added strength

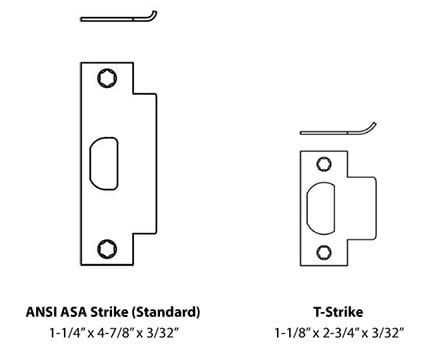

  • 2-3/4" backset latch and ASA strike standard (t-strike and full lip strike available in lock parts and accessories)

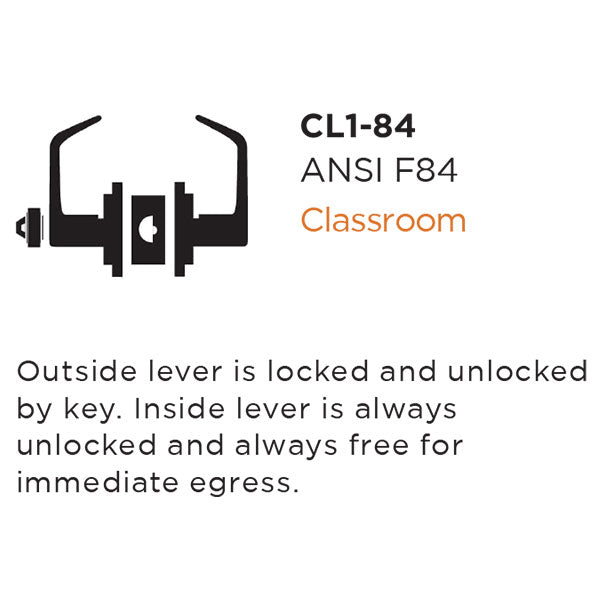

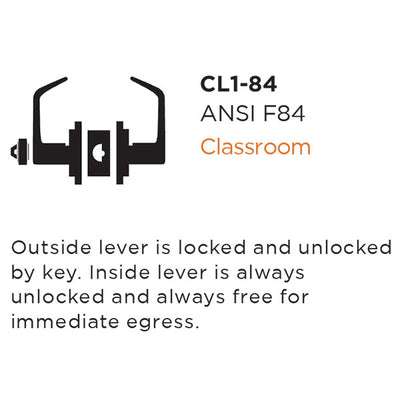

Classroom Function, ANSI F84 – Outside lever is locked and unlocked by key. Inside lever is always unlocked and always free for immediate egress.

Code Compliance

  • Meets ANSI/BHMA A156.2, Series 4000, Grade 1 standards, exceeds 1,000,000 cycles
  • UL listed for “A” label 3 hour fire-rated doors
  • Meets ADA and ANSI A117.1 accessibility codes
  • Meets California code for 1/2" lever return to door face
trudoor-certs

Cross Reference


The CL1-75 can be specified as a substitute for: Accentra/Yale 5408LN / 4708LN, Arrow QL17 / GL17 Cal-Royal CGN03 / CAL03, Corbin Russwin CL3355, Design Hardware Z-84-F, Dorma C170 / C870, Falcon K561 / T561, Hager 3470, Marks 195S, PDQ GT148, Sargent 10G37 / 10XG37, Schlage ND70,  Stanley QCL160
