Trudoor

Trudoor CL2-82-SFIC Entry Lever Lock, Small Format Interchangeable Core Prep

$60.80
Usually Ships:  Same Day
  • Meets & exceeds ANSI Grade 2 standards
  • Small format interchangeable core prep (core sold separately)
  • ADA compliant, 3-hour fire-rated

Available Options:

Clear

Product Overview

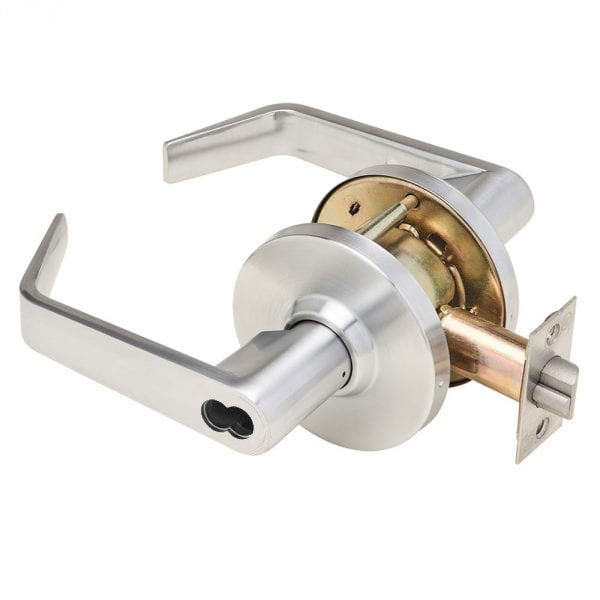

Trudoor CL2-82-SFIC, CL2 Series Grade-2 Cylindrical Lever Lock, Entrance Function, Small Format Interchangeable Core Prep, Less Core

Trudoor® CL2 Series cylindrical locks are an ideal choice for a wide variety of medium-duty commercial applications where consistent reliability and easy installation are required at an economical price. CL2 locks are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial or industrial buildings.

Interchangeable core users can enjoy the convenience of fast rekeying without having to disassemble the lock. This feature is very useful in applications where a high frequency of core changes are needed.

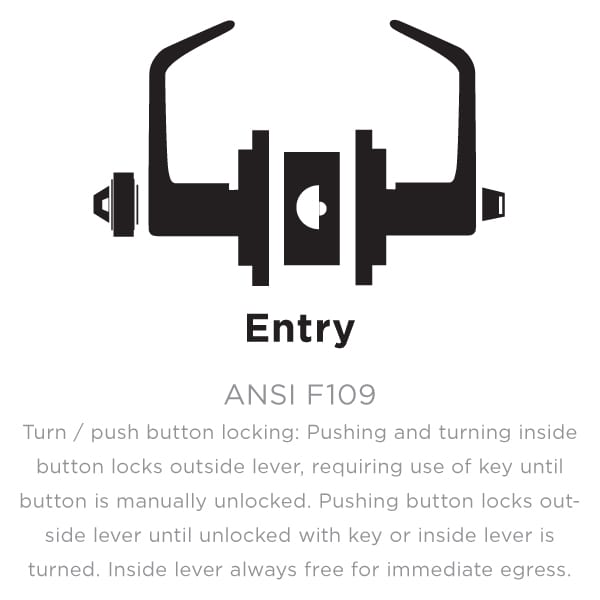

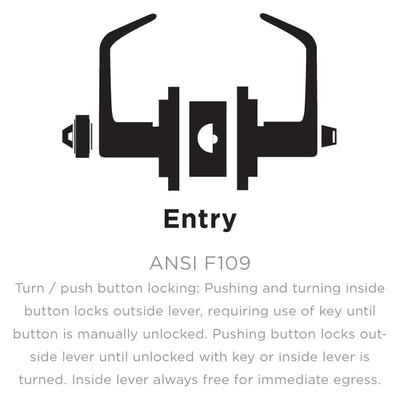

Entry Function, ANSI F109 - Turn / push button locking: Pushing and turning inside button locks outside lever, requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Inside lever always free for immediate egress.

  • SFIC = Small Format Interchangeable Core (Core Sold Separately)
  • Quality construction and reliability at an affordable price
  • Anti-sag mechanism with independent lever return springs to prevent sag
  • Non-handed and reversible for easy installation
  • Optional thru-bolts for added strength
  • 626 Satin Chrome finish
  • 2-3/4" backset latch and ASA strike standard (2-3/8" backset, t-strike, and full lip strike available in lock parts and accessories)

Code Compliance

  • Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
  • UL Listed for “A” Label 3 Hour Fire-Rated Doors
  • Meets ADA and ANSI A117.1 Accessibility Codes
  • Meets California code for 1/2" lever return to door face

Cross Reference

The CL2-82-SFIC can be specified as a substitute and/or replacement for: Arrow MLX81-SB / RL11, Cal-Royal ICSL00 / ICXP00, Corbin Russwin CL3851 M08, Design Hardware J-82-IC-F, Dorma C253J / CL753J, Falcon B511BD / W511BD, Hager 3553-SFIC-NC, Marks 175RAB, PDQ SD116 SFL / GP116 SLF, Sargent 2870-65G05 / 2870-7G05, Schlage AL53BD / ALX53B,  Stanley QCL251, Yale 5307LN / 4607LN

ANSI Grade

Meets & exceeds ANSI – A156.2 Series 4000 Grade 2 standards
Backset

2-3/8"2-3/4"
Brand

Trudoor
Cylinder

Prepped for (SFIC) Small Format Interchangeable Core (less core)
Cylinder Format

Small Format Interchangeable Core (SFIC)
Door Applications

Interior or Exterior Hollow Metal Doors and Wood Doors
Door Thickness

1-3/8" to 1-3/4"
Fasteners

Combination screws for wood or metal doors & frames
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Handing

Non Handed – Completely Reversible
Latch

1/2" throw deadlatch – 1" x 2-1/4" face
Lock Function

Entry (Entrance)
Strike

4-7/8" ASA Strike2-3/4" T-Strike
Usage

Medium Duty
Warranty

Limited Lifetime Warranty
