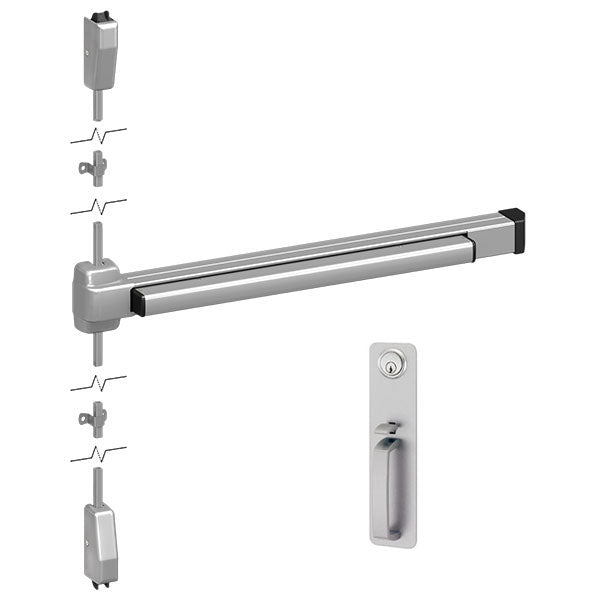

Von Duprin 2227TP Surface Vertical Rod Panic Bar Exit Device with Thumbpiece Pull

$816.44
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • ANSI Function 05 (Key Locks/Unlocks)
  • Includes 230TP Thumbpiece Pull (cylinder sold separately)

Available Options:

Clear

Product Overview

The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. It is ANSI A156.3, Grade-1 certified and has UL fire ratings (22-F). The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. It also is UL listed for Panic Hardware or Fire Hardware.

  • Standard Sizes: 3' x 7', 4' x 7' (extension rod for 8' doors available)
  • Finishes: SP28 (Sprayed Aluminum), SP313 (Sprayed Dark Bronze)

230TP Thumbpiece Pull Trim (Key Locks & Unlocks)

  • ANSI Function: 05
  • Escutcheon plate size: 3" x 12-1/16" x 3/32"
  • Projection: 2"
  • Pull center to center: 5-1/2"
  • Mortise cylinder must be ordered separately

ANSI/BHMA Standard

ANSI/BHMA A156.3-2008 Grade 1 certified
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/4" Mortise Cylinder (sold separately)
Device Type

Surface Rod Device
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Finish

AluminumDark Bronze
Finishes

689 Aluminum695 Dark Bronze
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

3 Hour Fire-Rated
Hand

Non-handed
Latchbolt

Deadlatching 3/4" throw
Length

4'0" (3'4" to 4'0" Doors)3'0" (2'4" to 3'0" Doors)
Projections

3-3/4" Maximum 3" Dogged
Stile Type

Wide (Standard)
Strikes

299 Top Strike 304L Bottom Strike - 248L4 Bottom strike for use with flat threshold
Trim

230TP Thumbpiece Pull
Usage

Medium Duty
Vertical Rods

Rods Accommodate Doors up to 7'0" - Cut to Specification in Field (extension rod available for 8'0" doors)
