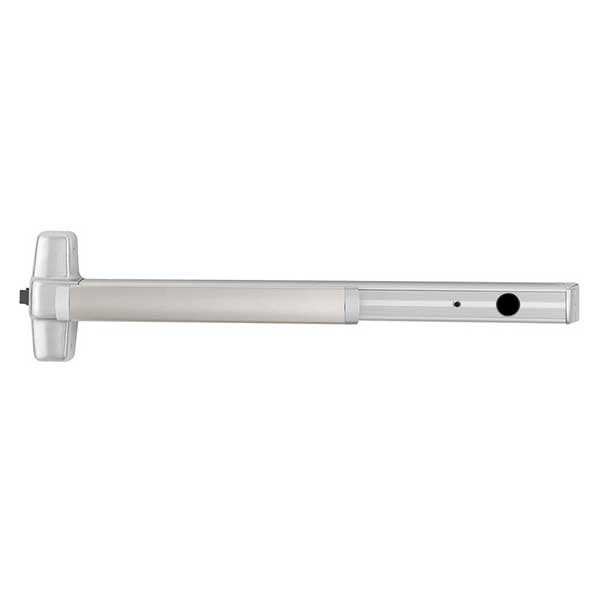

Von Duprin CXA99EO Chexit Delayed Egress Rim Exit Device

$3,224.10
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1, Made in USA
  • Designed for controlled egress applications
  • Requires mortise cylinder (sold separately)

Available Options:

Clear

Product Overview

Von Duprin CXA99EO Grade 1 Chexit Delayed Egress Exit Device, Rim Latch, Exit Only

High-performance, wide stile heavy-duty rim exit device for high use and abuse applications

The Chexit® (CX): The Von Duprin Chexit device is designed for controlled egress applications. It meets both life safety and security needs, as well as the requirements of NFPA 101 for "Special Locking Arrangement" and IBC "Special Egress-Control Devices". All control inputs, auxiliary locking, local alarm and remote signaling outputs are self-contained in the Chexit assembly. Numerous configurable options allow the device to be customized for the specific code or application requirements. The standard Chexit device sounds an alarm and keeps the door secured for 15 seconds following an exit attempt with immediate release upon fire.

The Chexit device includes a 6" x 20" decal for application on door. “PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS”

Chexit typical applications
Chexit single door with options – The Chexit is used as an access control device. The card reader allows access. Also shown in this application is an external horn and door position switch. The auxiliary horn is used for increased volume in remote locations. Using a door position switch gives added security to the opening in case the door is not reclosed.

With the Chexit disarmed, the opening functions as a normal exit device. If card readers are required on both sides of the door, the normally closed contacts of the readers should be wired in series.

Specifications / Power supply requirements
Input voltage – 24VDC
Input current inrush – 1.25A
Input current holding – 390mA
Alarm relay and Secure relay contact ratings – 24VDC, 1A
Fire alarm, Inhibit and Door position switch inputs require normally closed dry contacts.

Power supply information for CX devices with motor driven blocking actuator
Power supply - Maximum number of devices
PS902 (up to 2 amps) - 1 Chexit device
PS904 (up to 4 amps) - 3 Chexit devices
PS906 (up to 6 amps) - 4 Chexit devices
PS914 (up to 4 amps) - 4 Chexit devices

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • For use with single doors or double doors with mullions
  • Deadlocking latchbolt standard
  • Minimum door opening sizes for CX devices: 3'0" = 2'10-3/4" - 4'0" = 3'4-3/4"
  • 299 Roller Strike Standard
  • ANSI/BHMA Certified, Grade-1
  • UL listed for panic exit hardware (F model UL listed for fire hardware)
  • Requires 1-1/4" mortise cylinder (sold separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Center Case

8" x 2-3/4" x 2-3/8"
Cylinder

Requires mortise cylinder (sold separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4″ Thick Doors
Electric Options

Delayed Egress
Fasteners

Includes screws for metal and wood doors
Finish

Satin Chrome
Finishes

US26D (626) Satin Chrome
Fire-Rated

Non-Fire-RatedFire-Rated (No Dogging)
Fire Rating

Fire-Rated up to 3 Hours
Hand

Non-handed
Includes Trim

No
Latchbolt

Deadlatching 3/4" throw
Length

3'0"4'0"
Projections

Pushbar Neutral – 3-13/16" - Pushbar Depressed – 3-1/16"
Stile Type

Wide (Standard)
Strike

299 roller strike standard
Usage

Heavy Duty
Von_Duprin_98_99_Series_Rim_Exit_Device_Installation_Instructions_db05679c-0f5f-46bb-959a-6c957861b25f How to Install Von Duprin 98/99 Rim Exit Device
