Air Louvers

Air Louvers VSLH Vision Lite Kit with Mullions and 1/4″ Clear Tempered Safety Glass

$445.45
Usually Ships:  20-30 Business Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • Mullions for a Divided Lite or French Door look
  • Includes impact-rated safety glass (only one pane required)

Available Options:

Clear

Product Overview

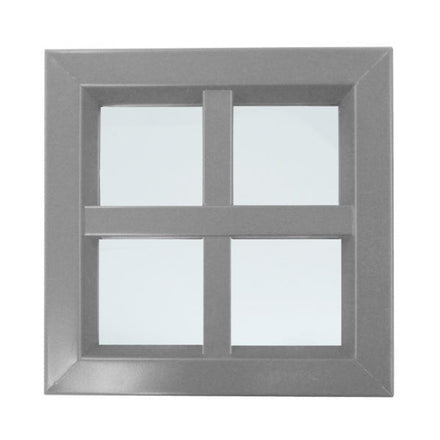

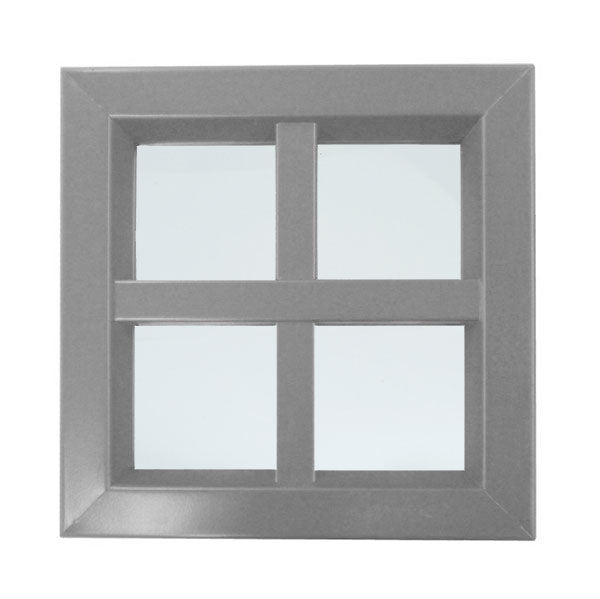

Steel vision lite kit with welded-on mullions for added security or the "French Door" look

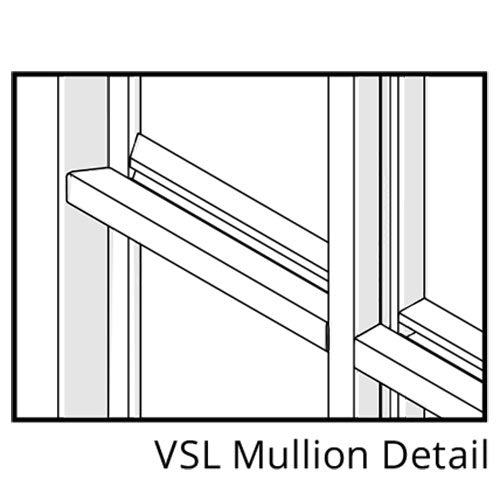

Mullions are welded to both sides of vision lite at heads, sills and jambs, and butt to glass. Only one pane of glass is required.

  • Order size equal to door cutout size
  • Includes 1/4″ thick clear tempered CAT II impact-rated glass (heat-treated safety glass that breaks into small particles)
  • 1" x 5/8" formed steel mullions welded-on to each side (only one pane of glass required)
  • For use with 1-3/4" thick doors only
  • Available in half lite and full lite sizes
  • Includes glazing tape

This product is made to order and non-returnable or refundable.

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and colors and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

made-in-usa

Brand

Air Louvers
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

GrayWhiteMineral Bronze
Finishes

Gray (G)White (W)Mineral Bronze (B)
Frame Construction

20 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Material

Cold Rolled Steel
Glass Appearance

Clear
Glass Approvals

ANSI Z97.1 Class A; and CPSC 16 CFR 1201 Category II
Glass Light Transmission

Approx. 86%
Glass Thickness

1/4"
Glass Type

Clear Tempered Glass
Model

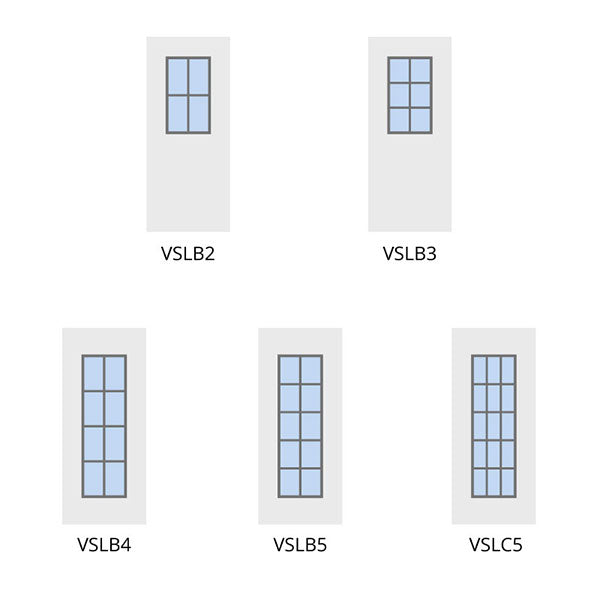

VSLB5 18" x 60"VSLB4 18" x 56"VSLB2 18" x 32"VSLC5 18" x 60"VSLB5 18" x 56"VSLB3 18" x 32"VSLB2 18" x 30"VSLC5 18" x 56"VSLB4 18" x 60"VSLB3 18" x 30"
Order Size

18" x 60"18" x 56"18" x 30"18" x 32"
Classification (Fire-Rating)

None
