Corbin Russwin

Corbin Russwin DL2213 Single Cylinder Deadbolt

$92.34
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.36 Certified Grade 2
  • Single Cylinder x Inside Turn
  • UL-cUL Fire-Rated Up to 3 Hours

Available Options:

Clear

Product Overview

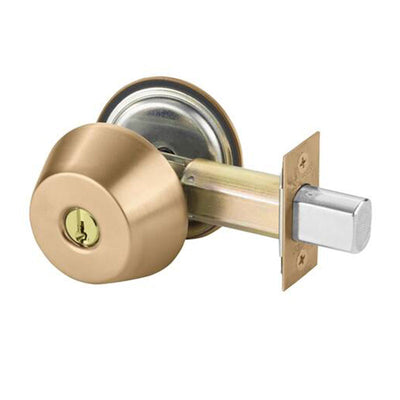

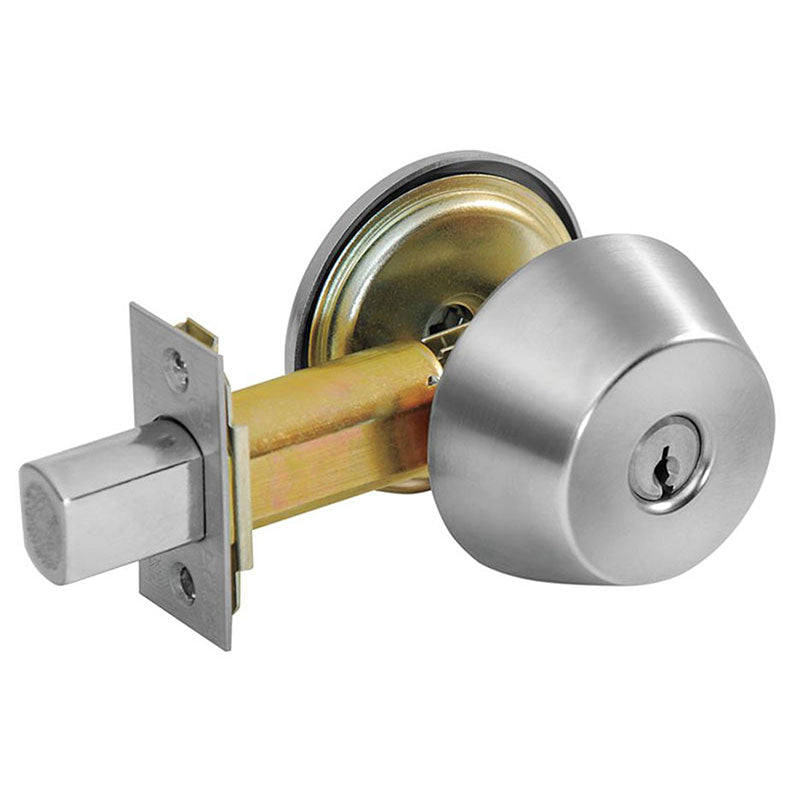

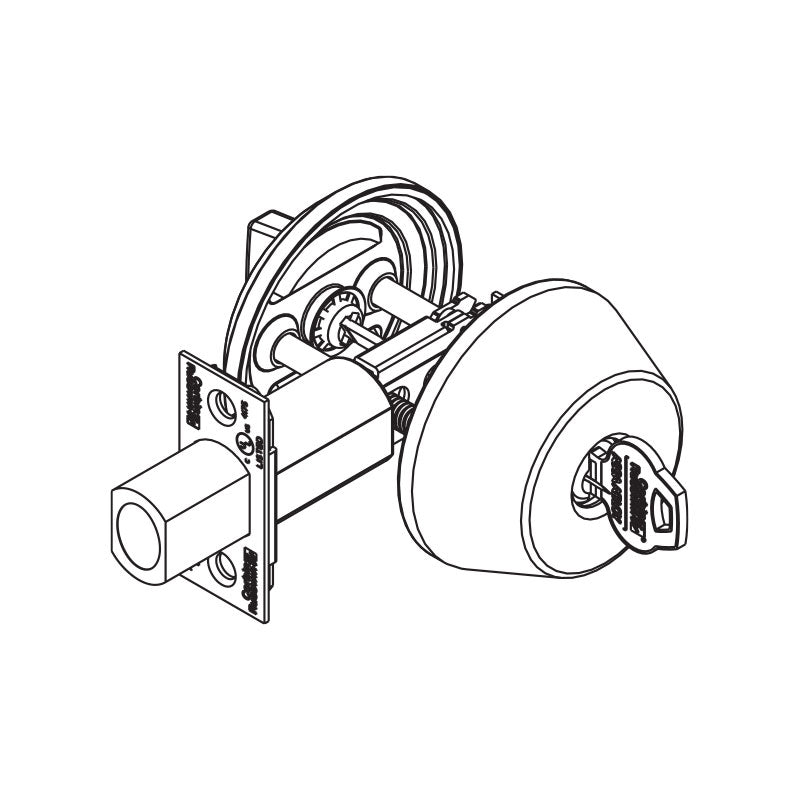

Corbin Russwin DL2213 Single Cylinder Deadbolt, Grade-2, 2-3/4" Backset


The DL2200 Series is an ANSI/BHMA Grade 2 cylindrical deadbolt ideal for standard duty applications.
ANSI E0151 Single Cylinder Deadlock
  • By key outside and by thumbturn inside
Brand

Corbin Russwin
Finishes

BSP Black Suede Powder Coat, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US3 (605) Bright Brass, US4 (606) Satin Brass, WSP White Suede Powder Coat
ANSI/BHMA Standard

A156.36 Certified Grade 2
Usage

Medium Duty
ANSI Function

E0151
Deadbolt Type

Single Cylinder
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Corbin Russwin L4 Keyway
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

Fire Rated - UL10C - Positive Pressure
