Corbin Russwin

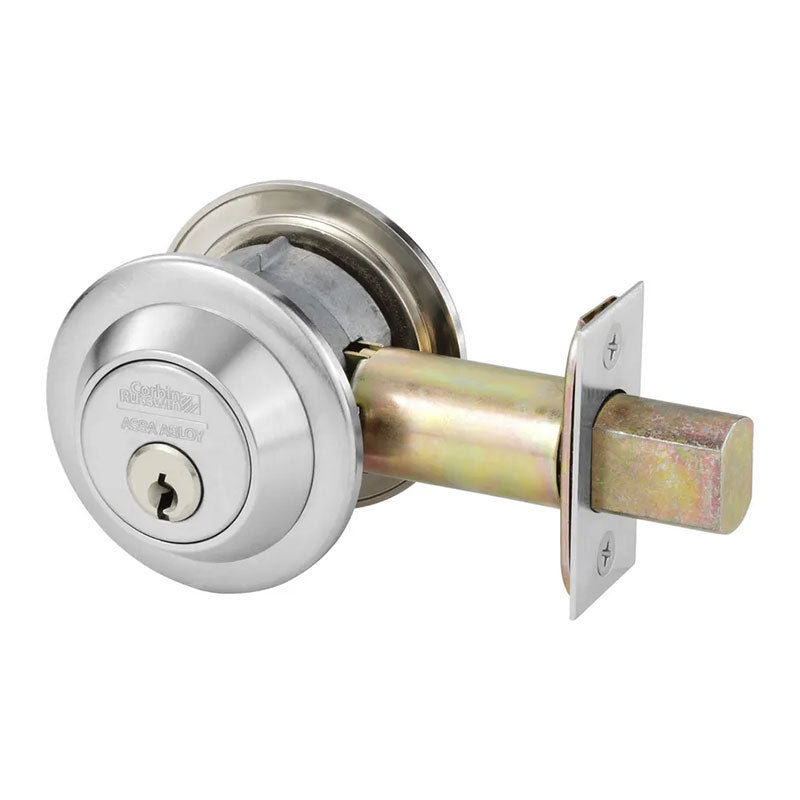

Corbin Russwin DL3012 Double Cylinder Deadbolt

$288.29
Usually Ships:  1-2 Business Days
  • ANSI/BHMA A156.36 Certified Grade 2
  • Double Cylinder (key on both sides)
  • UL-cUL Fire-Rated Up to 3 Hours

Available Options:

Clear

Product Overview

266.91Corbin Russwin DL3012 Double Cylinder Deadbolt, Grade-2, 2-3/4" Backset





The DL3000 Series is a strong, reliable deadbolt for standard application

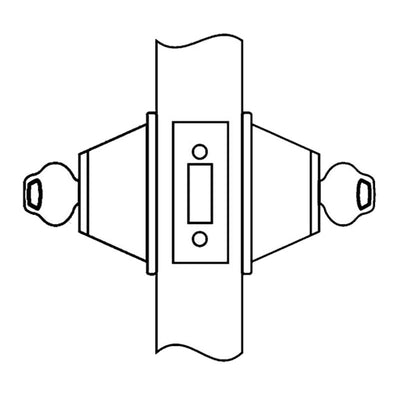

ANSI E0141 Double Cylinder Deadlock
  • By key either side

Brand

Corbin Russwin
Finishes

BSP Black Suede Powder Coat, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US3 (605) Bright Brass, US4 (606) Satin Brass, WSP White Suede Powder Coat
ANSI/BHMA Standard

A156.36 Certified Grade 2
Usage

Medium Duty
ANSI Function

E0141
Deadbolt Type

Double Cylinder
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Corbin Russwin L4 Keyway
Bolt

Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

Fire Rated - UL10C - Positive Pressure
