Product Overview

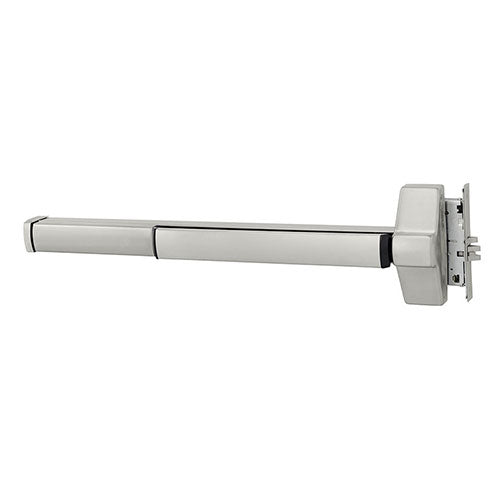

Corbin Russwin ED5600 Grade-1 Panic-Listed Mortise Lock Exit Device, Exit Only or for use with Classroom or Passage Lever Trim
All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. Abuse and cycle tests prove time and again the durability of the entire ED5000 series, and backed by a 5-year warranty.
- Exit Only or for use with Classroom or Passage Lever Trim (Corbin Russwin outside trim sold separately)
- Includes mortise lock body and ANSI curved lip strike
- Designed for standard width stile applications on wood and metal doors
- All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
- UL symbol on active case cover indicates listing
- ED5600A: 3-Hour Fire-Listed Mortise Exit Device
- All exit devices comply with NFPA 101 Life Safety Code
- All fire-rated devices comply with NFPA 80 Fire Doors and Windows
Applications
- Schools
- Hospitals
- Office Buildings
- Theaters
| ANSI/BHMA Standard |
Meets A156.3 Type 3 Grade 1 |
|---|---|
| Brand |
Corbin Russwin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal wood or composite doors |
| Fasteners |
sex nuts and bolts. |
| Finish |
Stainless Steel |
| Finishes |
630 Satin Stainless Steel |
| Fire-Rated |
Non-Fire-Rated (w/ Dogging Feature)Fire-Rated (No Dogging) |
| Fire Rating |
3-Hour Fire-Listed |
| Hand |
LHR (Left Hand Reverse)RHR (Right Hand Reverse) |
| Handing |
Handed - Field Reversible |
| Latchbolt |
2-piece mechanical 3/4" (19mm) throw stainless steel with auxiliary deadlocking latch |
| Length |
48" (W048 for 36" to 48' Doors)36" (for 30" to 36" Doors) |
| Stile Type |
Wide (Standard) |
| Strike |
ANSI curved lip standard. 4-7/8" x 1-1/4" x 1-1/4" lip to center. |
| Usage |
Heavy Duty |
| Warranty |
5 Year |
