Hager

Hager 3216 Thumbturn x Occupancy Indicator Deadbolt

$44.67
Usually Ships:  3-5 Business Days
  • Ideal for Commercial Restroom Doors
  • Door Bolt Occupancy Indicator x Inside Turn
  • Includes Emergency Release Key

Available Options:

Clear

Product Overview

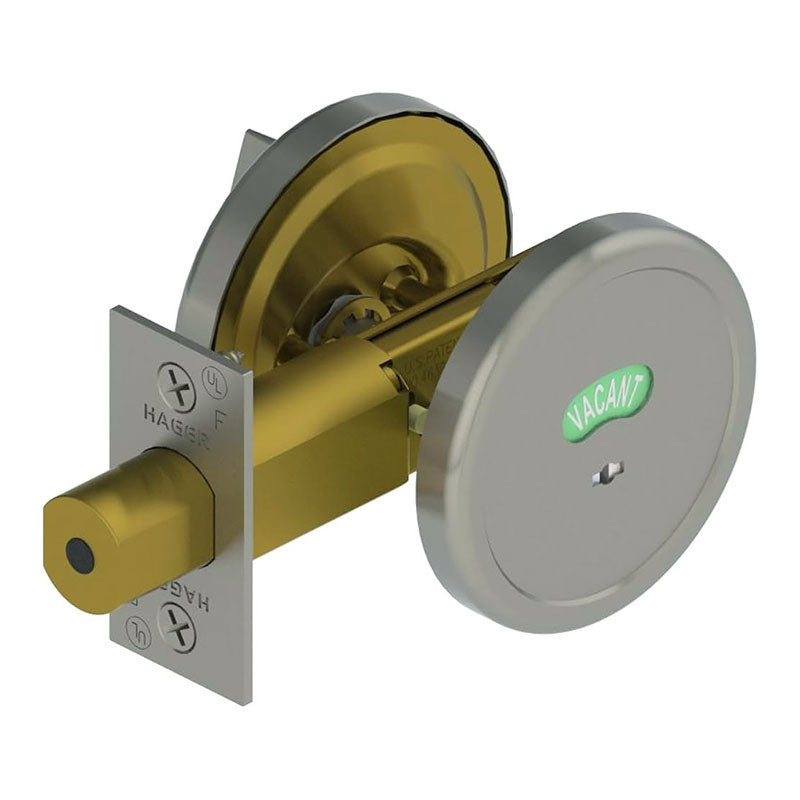

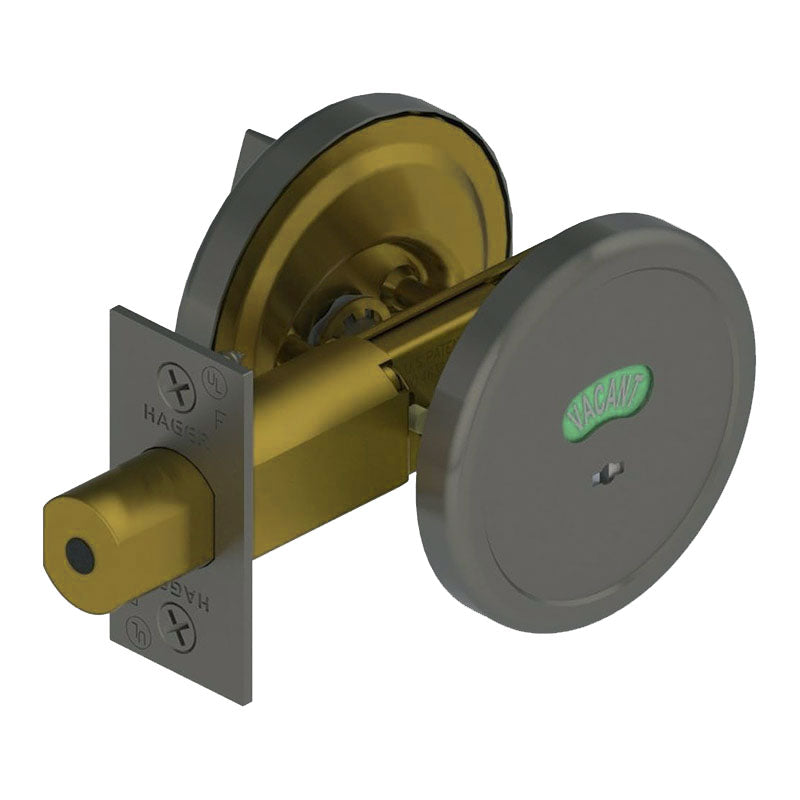

Hager 3216 Thumbturn x Occupancy Indicator Deadbolt


Hager 3200 Series Grade 2 deadlock provides a perfect combination of value and performance and is the ideal choice of lock for typical commercial applications. The 3200 Series is an economical alternative to Grade 1 when Grade 1 is not required. It is a perfect complement to the 3500 or 2500 Series for extra protection against break-in and is backed by a lifetime warranty.
Thumbturn x Occupancy Indicator: Deadbolt operated by thumbturn inside, emergency override key outside. Outside indicator displays “In Use” when deadbolt is thrown and “Vacant” when deadbolt is retracted.
Brand

Hager
Finishes

US10B (613) Oil Rubbed Bronze, US26D (626) Satin Chrome, US32D (630) Satin Stainless Steel
Deadbolt Type

Indicator
Usage

Medium Duty
ANSI/BHMA Standard

BHMA Certified ANSI A156.5 Grade 2
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

UL/cUL Listed for all functions up to 3 hours for "A" label single doors
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Door Thickness

1-3/8" to 1-3/4"
Warranty

Limited Lifetime Warranty
