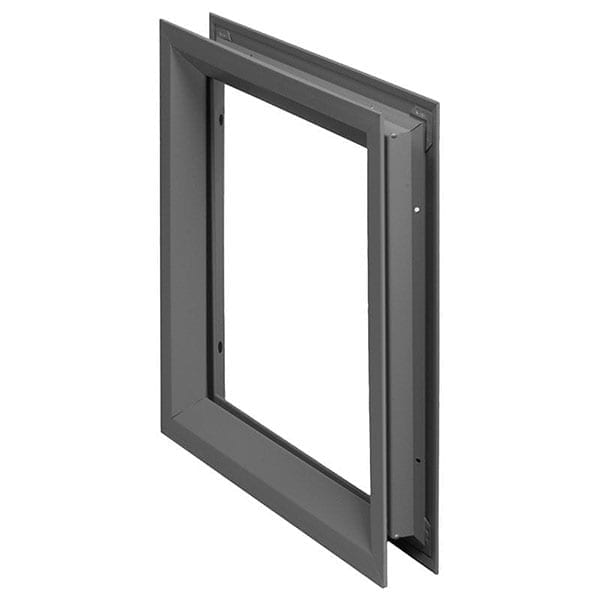

NGP (National Guard) L-FRA100-SP Vision Lite Frame for 1" Thick Glass, 1-3/4" Thick Door

$94.61
Usually Ships:  10-15 Business Days
  • 18-Gauge Steel Frame
  • For 1" Thick Glass (Not Included)
  • For 1-3/4″ Thick Steel or Wood Doors

Available Options:

Clear

Product Overview

NGP L-FRA100-SP Low Profile Lite Kit for 1-3/4" Thick Doors and 1" Glass

  • 18 Ga. Cold Rolled Steel
  • Mitered and welded corners with countersunk mounting holes
  • Welded reinforcing clips at corners
  • Order size equal to cutout size - Glass size is 1" under, Visible glass is 2" under
  • Glass / Glazing Tape Not Included - 1" thick insulated glazing to be ordered separately from our glazing section. Use fire-rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • Fire-rated up to 3 hours

made-in-usa

Brand

NGP (National Guard)
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Door Thickness

1-3/4"
Finish

Gray PrimedDark Bronze
Finishes

DKB - Dark BronzeGPZ - Gray Primer
Frame Construction

18 Gauge Cold Rolled Steel
Frame Fasteners

#8 x 1" Flathead Phillips SMS - Included
Frame Fire-Rating

3 Hour - Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure - WHI Listed
Frame Profile

Low
Glass Thickness

1"
Order Size

24" x 24"6" x 27"24" x 64"24" x 32"8" x 32"24" x 60"24" x 30"7" x 22"24" x 36"
