Sargent 60-485 Single Cylinder Deadbolt, LFIC Prep

$166.19
Usually Ships:  1-2 Business Days
  • Heavy-Duty, ANSI/BHMA Grade 1
  • Single Cylinder x Inside Turn
  • LFIC permanent core sold separately

Available Options:

Clear

Product Overview

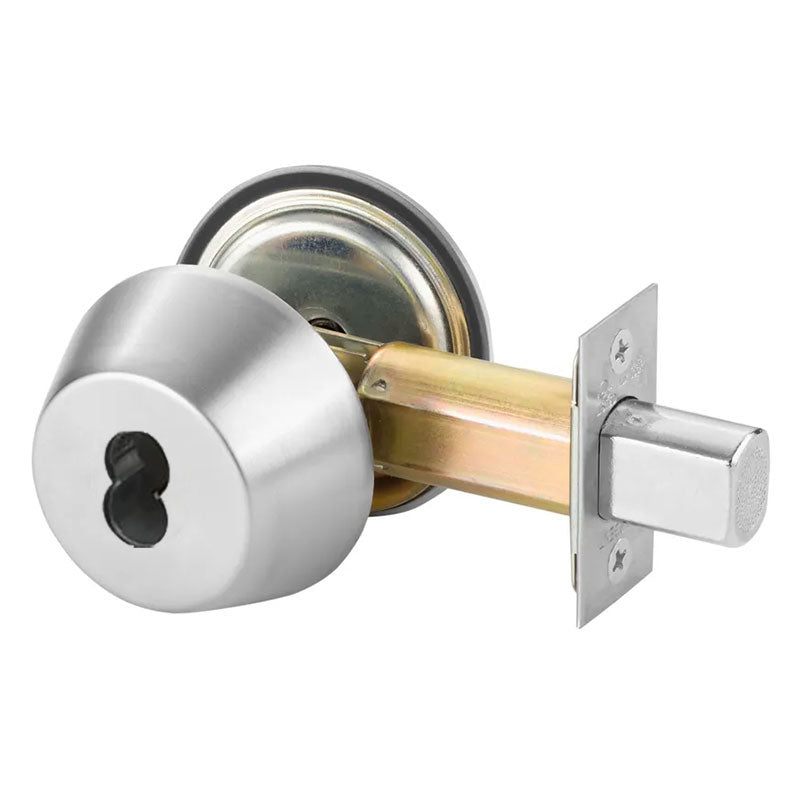

Sargent 60-485 Single Cylinder Deadbolt, 2-3/4" Backset, LFIC Prep, Less Core


Ideally suited for heavy-duty industrial and security applications, the 480 Series is a high-grade cylindrical deadbolt that is certified to ANSI/BHMA A156.36 Grade 1 standards.

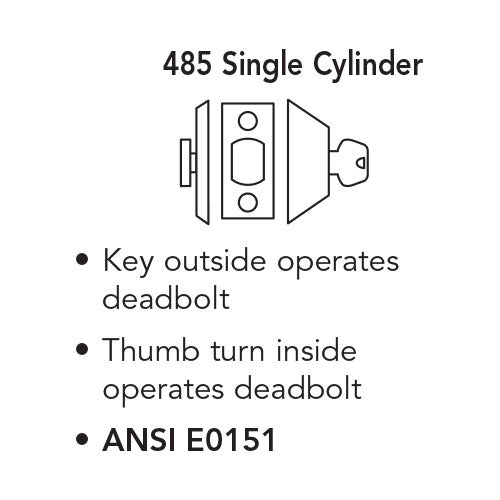

ANSI E0151 Single Cylinder Deadlock
  • Key outside operates deadbolt
  • Thumbturn inside operates deadbolt
60- Lock to accept (LFIC) Large Format Interchangeable Core (removable core) and provided with disposable plastic core; LFIC permanent core ordered separately
Brand

Sargent
Finishes

BSP Black Suede Powder Coat, US10 (612) Satin Bronze, US10B (613) Oil Rubbed Bronze, US10BE (613e) Dark Oxidized Satin Bronze, Equivalent, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US3 (605) Bright Brass, US4 (606) Satin Brass, WSP White Suede Powder Coat
ANSI/BHMA Standard

A156.36 Certified Grade 1
Usage

Heavy Duty
ANSI Function

E0151
Deadbolt Type

Single Cylinder
Cylinder Format

Full Size Interchangeable Core (FSIC)
Cylinder

Lock to accept LFIC (removable core) and provided with disposable plastic core; LFIC permanent core ordered separately
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

Fire Rated - UL10C - Positive Pressure
