Schlage

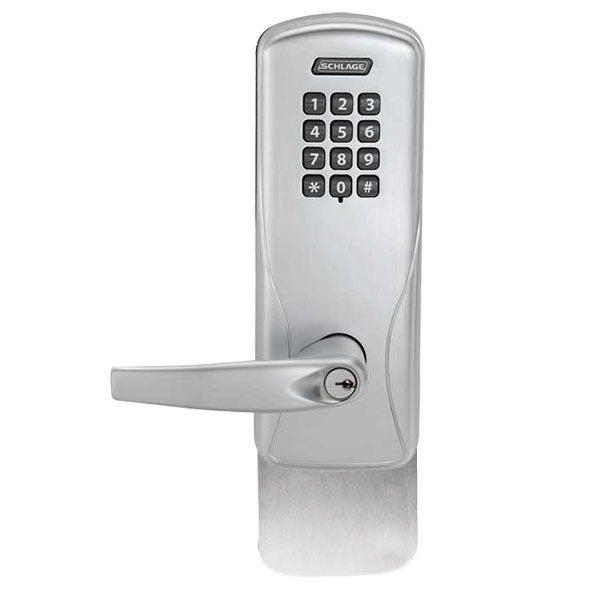

Schlage CO-100-993S-70-KP-ATH Electronic SVR Exit Device Trim with Keypad, Athens Lever

$706.34
This item ships FREE! Usually Ships:  1-2 Business Days
  • Standalone Electronic SVR Exit Device Trim
  • Compatible with Von Duprin 22 & 98/99 Surface Vertical Rod Devices
  • Up to 500 Unique PIN Codes, Mechanical Key Override

Available Options:

Clear

Product Overview

Schlage CO-100-993S-70-KP-ATH Standalone Electronic Lock, Surface Vertical Rod Exit Device Trim, Classroom Function, Keypad, Athens Style Lever, With Schlage Standard Cylinder

The CO Series offers 993 Exit Trim for use with compatible exit devices in retrofit or new construction applications. The 993 Exit Trim was designed to suite with CO Series cylindrical and mortise locksets to ensure that the facility remains aesthetically consistent.

Storeroom Function (70): Lockset is normally secure. Inside lever always allows free egress. Valid toggle credentials on the exterior may be used to change to a passage or secured status.

  • Exit device not included (sold separately)
  • 4 AA batteries included - up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified

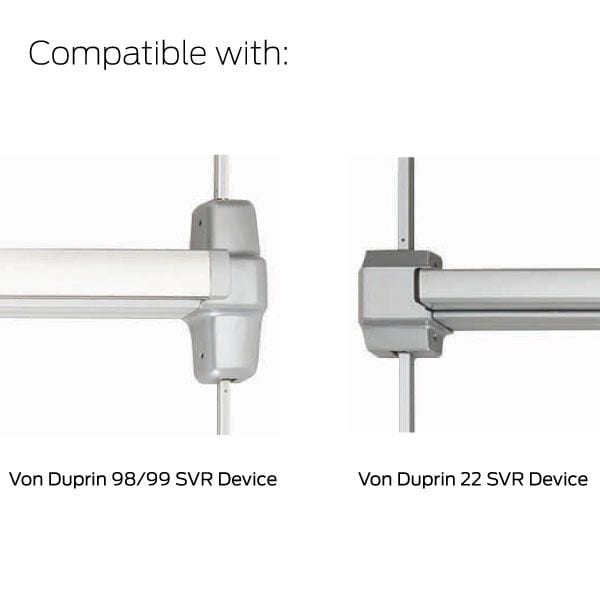

Device Combability:

Battery Life

Up to 2 yrs with 4 AA batteries
Brand

Schlage
Certifications

ANSI/BHMA A156.25 ANSI/BHMA Grade 1 UL 294
Cylinder Format

Conventional
Door Thickness

1-3/4"
Finish

Bright ChromeSatin ChromeSatin NickelSatin BrassSatin Chrome AM (Antimicrobial)Aged BronzeBright BrassSatin Bronze
Finishes

626AM Satin Chrome Antimicrobial612 Satin Bronze626 Satin Chrome643e Aged Bronze606 Satin Brass619 Satin Nickel625 Bright Chrome605 Bright Brass
Fire Rating

UL Listed
Handing

Non-Handed
Keyway

Schlage S123 KeywaySchlage C Keyway
Lever Design

ATH (Athens)
Lock Function

Exit Device Trim
Lock Type

Exit Device Trim
Power

4 AA batteries
Reader Type

Keypad
Usage

Heavy Duty
Users

Up to 500
Schlage_CO-Series_for_Exit_Device_Installation_Instructions_102297 How to Install Von Duprin 98/99 Rim Exit Device
