Product Overview

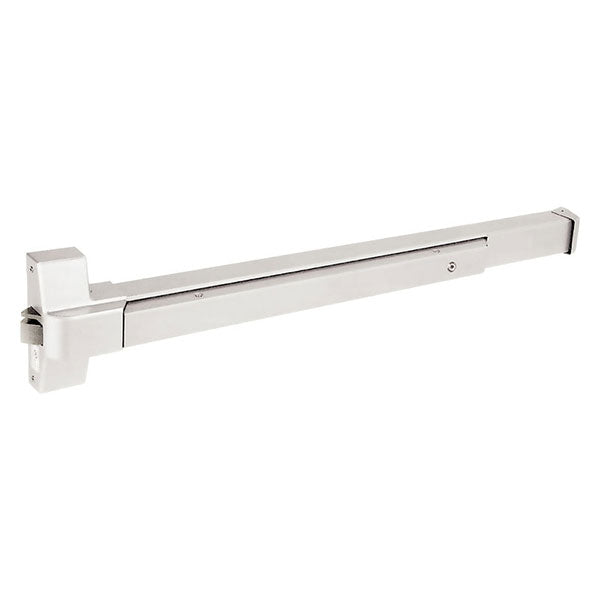

Townsteel TS5000 Grade-2 Rim Exit Device, Exit Only
TS5000 series is a grade 2 rim device and UL listed as exit hardware.
- Exit Only - (outside trim sold separately)
- Non-handed and easily reversible
| ANSI/BHMA Standard |
Certified ANSI/BHMA Grade-2 |
|---|---|
| Brand |
TownSteel |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Thickness |
1-3/4" |
| Finish |
AluminumStainless Steel |
| Finishes |
AL - Aluminum630 Satin Stainless Steel |
| Fire Rating |
None |
| Handing |
Non Handed – Completely Reversible |
| Latchbolt |
Stainless steel 3/4" throw – Deadlocking |
| Length |
48" (For 37” to 48” doors)36" (For 30” to 36” doors) |
| Stile Type |
Wide (Standard) |
| Strike |
Roller Strike |
| Usage |
Light Duty |
