Trudoor TDE-F2000V-EO Surface Vertical Rod Exit Device, Fire Rated, Exit Only

$281.40
Usually Ships:  Same Day
  • Meets ANSI/BHMA A156.3 Grade 1 standards
  • ANSI function 01, exit only (trim sold separately)
  • UL Listed for fire exit hardware

Available Options:

Clear

Product Overview

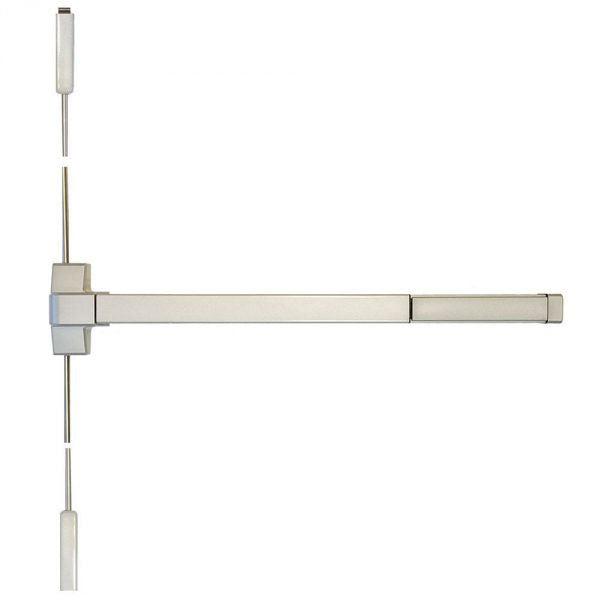

Trudoor TDE-F2000V Grade-1 Surface Vertical Rod Exit Device, Fire Rated, Exit Only


TDE-F2000V Series surface vertical rod exit devices are an ideal choice for a wide variety of standard to medium-duty commercial and industrial door applications where durability, reliability, and code compliance are required at an economical price. Trudoor products meet or exceed industry standards and can be substituted for any other specified brand.
  • Exit Only (Trudoor Exit Device Trim sold separately)
  • UL Listed for Panic Exit Hardware and Fire Hardware
  • Designed for medium to heavy use
  • Top latch: U shaped top latch for secure engagement with strike (not electric strike compatible)
  • Bottom latch: Drop bolt style bottom latch secures into flat strike & hole in the floor
Sizes
  • 3’0″ x 7’0″ (for 2’4″ to 3’0″ wide door, 7’0″ height)
  • 3’0″ x 8’0″ (for 2’4″ to 3’0″ wide door, 8’0″ height)
ul-listed
Brand

Trudoor
Finishes

AL - Aluminum
Size

3'0" x 7'0", 3'0" x 8'0"
Device Type

Surface Rod Device
ANSI/BHMA Standard

Meets ANSI/BHMA A156.3 Grade 1 Standards
Usage

Medium Duty
ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim
Fire Rating

3 Hour UL Listed
Trim

None - Exit Only (Outside Trim Sold Separately)
Dogging Feature

None
Fasteners

Wood, Machine & Self Tapping Machine Screws
Handing

Easily Re-handed in the field – Shipped as RHR
Stile Type

Wide (Standard)
Minimum Stile Width

4-1/2"

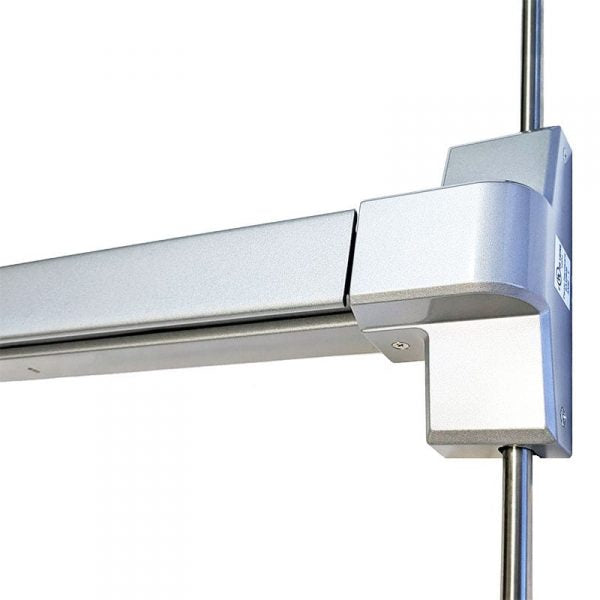

Center Case

6″ Height x 2-5/16″ Wide x 2-1/2″ Thick
Projections

2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)
Warranty

Limited Lifetime Warranty
