Von Duprin

Von Duprin 22EO ALK Rim Exit Device with Battery Powered Alarm Kit

$845.34
This item ships FREE! Usually Ships:  1-2 Business Days
  • ANSI/BHMA Grade-1 Certified - Made in USA
  • Includes “EMERGENCY EXIT ONLY. ALARM WILL SOUND.” decal
  • Includes 3215 mortise cylinder (Schlage C keyway)

Available Options:

Clear

Product Overview

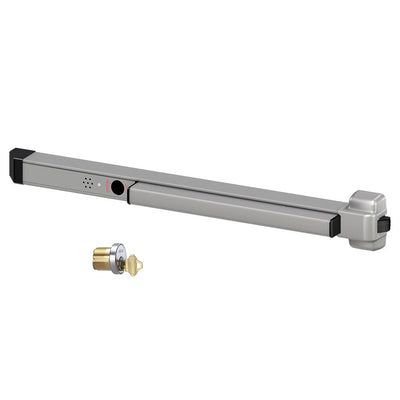

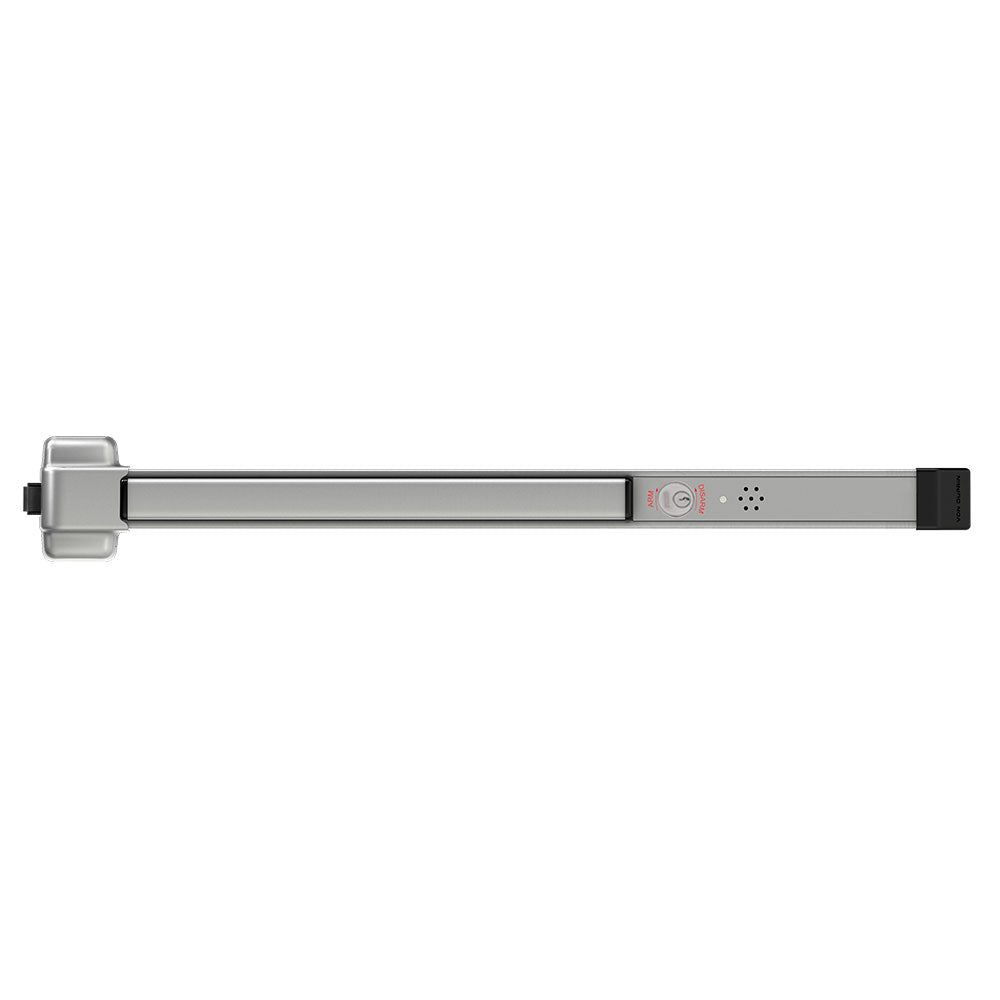

Von Duprin 22EO ALK Grade 1 Rim Exit Bar, Wide Stile Pushpad, 3ft., Exit Only, Less Trim, Battery Powered Alarm Kit with Cylinder, RX Switch


ALK Alarm Kit is a simple yet effective way to deter unauthorized use of an opening. While the exit device is still a means of egress, the ALK kit contains an internal horn. When the touch bar is depressed, the horn sounds to provide an audible means of signaling that the opening has been violated. The alarm kit can be armed or disarmed by key thus allowing the exit device to be set in an armed or disarmed mode. The horn is rated at 85 decibels.
The assembly includes both a 24VDC Input and External Inhibit standard. The External Inhibit provides remote arming and disarming. The key switch uses a standard 1-1/4″ mortise cylinder with a straight cam (included). The unit operates on one standard 9-volt alkaline battery. When the battery is weak, the horn will emit an intermittent low battery alert signal.
  • ANSI A156.3, 2008 Grade-1
  • Operates on one standard 9-volt alkaline battery (included)
  • Includes RX Request to Exit Switch
  • UL listed for panic hardware
