Product Overview

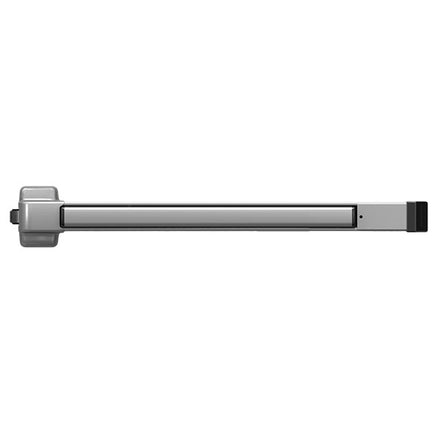

Von Duprin 22EO Grade-1 Panic Rim Exit Device, Exit Only
The 22 Series wide stile device is a cost-effective solution for medium to low traffic areas where proven reliability is needed. The non-handed design of the 22 Series makes it more adaptable in the field. The 22 Series is designed and manufactured in accordance to ISO 9001 Quality Management System. The 22 Series is an economical alternative that incorporates a modern touch bar styling for any door type.
- Exit Only (Von Duprin 22 Series Exit Device Trim Sold Separately)
- ANSI A156.3, 2008 Grade-1
- UL listed for panic hardware
- Covers stock hollow metal doors with 161 cutout
| ANSI/BHMA Standard |
ANSI/BHMA A156.3-2008 Grade 1 certified |
|---|---|
| Brand |
Von Duprin |
| Buy American Act Compliance |
Meets Buy Amercian Act - Made in USA |
| Dogging Feature |
Half turn hex dogging standard |
| Fasteners |
Includes screws for metal and wood doors |
| Finish |
Dark BronzeBlackAluminumChrome Powder Coated |
| Finishes |
526 Powder Coated Chrome622 Matte Black695 Dark Bronze689 Aluminum |
| Fire Rating |
None |
| Hand |
Non-handed |
| Latchbolt |
Deadlatching 3/4" throw |
| Length |
3'0" (2'4" to 3'0" Doors)4'0" (3'4" to 4'0" Doors) |
| Projections |
3" |
| Stile Type |
Wide (Standard) |
| Strike |

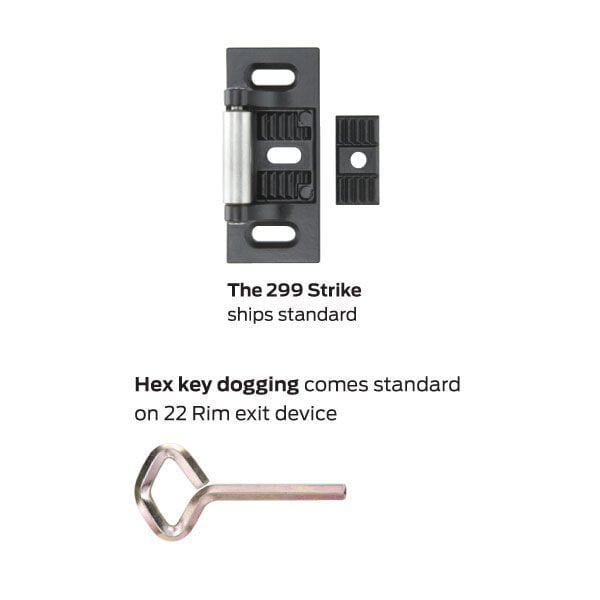

299 roller strike standard |
| Usage |
Medium Duty |
