Von Duprin

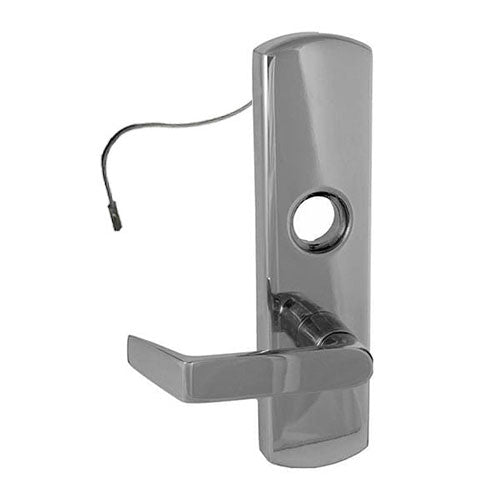

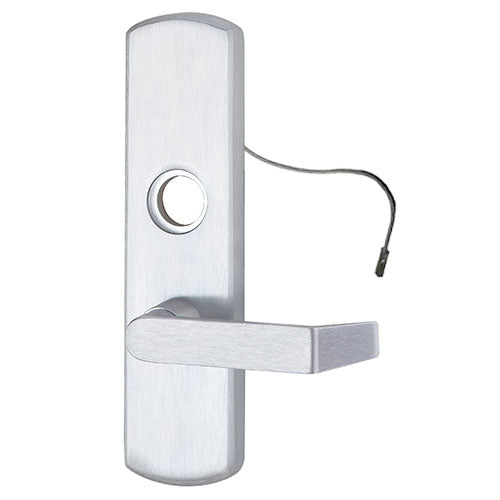

Von Duprin M996L-R/V-06 Motorized Breakaway Lever Trim for 98/99 Series Exit Device

$1,202.52
This item ships FREE! Usually Ships:  1-2 Business Days
  • For use with 98/99 Series rim or vertical rod device
  • Key locks/unlocks lever (cylinder sold separately)
  • Remote locking and unlocking capabilities

Available Options:

Clear

Product Overview

Von Duprin M996L Grade 1 Motorized Lever Trim, Cylinder Override, Less Cylinder, Rim/Vertical Rod Prep, 06 Lever Style

M996L motor driven electrified breakaway lever trim provides remote locking and unlocking capabilities while incorporating the patented vandal-resistant trim design. The motor can be energized from a distant controller, thus allowing access control of the opening. The control of stairwells in high-rise buildings is a common application for this trim. M996 is furnished fail safe (FS) and convertible to fail secure (FSE) via dip switch.

  • Fail safe standard, can also be converted in the field to fail secure
  • Dual voltage – up to 1.12 amps @ 12 VDC, Up to .59 amps @ 24 VDC.
  • ANSI Function: 08
  • Escutcheon plate size: 2-3/4" x 10-3/4" x 27/32"
  • Projection: 2-7/8"

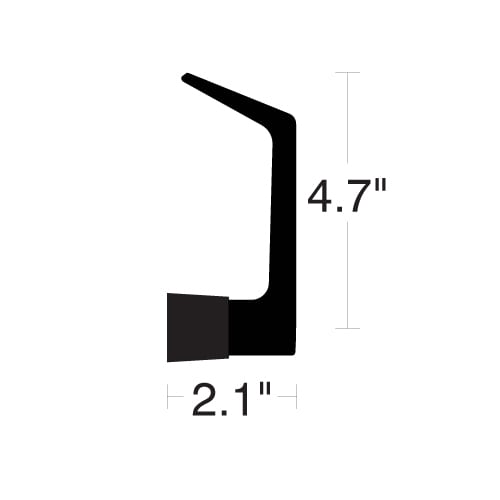

  • #06 lever style furnished standard
  • Cylinder must be ordered separately - requires 1-1/8" rim cylinder

ANSI Grade

ANSI Grade 1
Brand

Von Duprin
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Finish

Bright ChromeBright BrassSatin BrassSatin ChromeSatin BronzeBlackDark Bronze
Finishes

SPBLK (693) BlackUS3 (605) Bright BrassUS26D (626) Satin ChromeUS4 (606) Satin BrassUS26 (625) Bright ChromeUS10 (612) Satin BronzeSP313 (695) Dark Bronze
Function

Entry / Classroom
Hand

Field reversible-shipped RHR
Lever Design

06
Usage

Heavy Duty
