Accentra (Formerly Yale)

Accentra (Formerly Yale) 6170 x AU626F Surface Vertical Exit Device with Classroom/Storeroom Lever Trim

$923.69
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • ANSI Function 08 (classroom) or 09 (storeroom)
  • Includes AU-626F lever trim (cylinder sold separately)

Available Options:

Clear

Product Overview

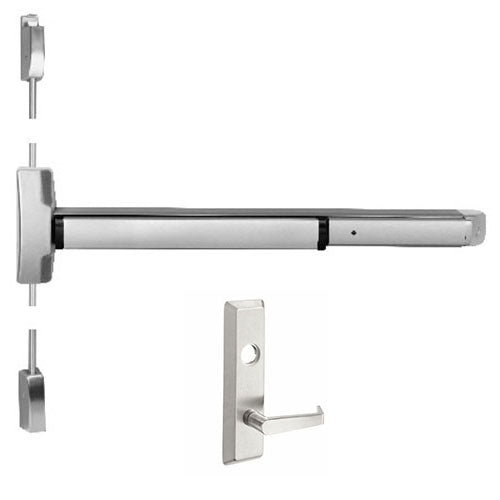

Accentra (formerly Yale) 6170/6170F Surface Vertical Rod Exit Device, AU-626F Classroom/Storeroom Lever Trim

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

  • ANSI Function 08 (Classroom) or 09 (Storeroom): Ships as 08 Classroom - 09 function achieved with single trim modification at installation
  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry

AU-626F Lever Trim

  • ANSI Function: 08 or 09 (cylinder controls lever)
  • 08 Function: Entrance by lever. Key locks or unlocks lever.
  • 09 Function: Entrance by lever only when released by key. Key removable only when locked.
  • Requires rim cylinder (sold separately)
  • AU (Agusta) lever design
  • Trim through-bolts to exit device for strength
  • Beveled sides improve attack resistance
  • Solid forged escutcheon and Free-Wheeling trim resists vandalism and abuse
  • Field reversible – ships as RHR
  • Dimensions: 3" x 10-1/4" x 13/16"
  • Projection: 2-5/8"
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Device Type

Surface Rod Device
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

BlackStainless Steel
Finishes

630 Satin Stainless SteelBSP Black Suede Powder Coat
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL/cUL Listed for use on fire doors up to 3 hours
Handing

Completely Reversible
Latchbolt

3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt held retracted during door swing
Length

48" (for 42" to 48" Doors)36" (for 30" to 36" Doors)
Lever Design

AU (Augusta)
Minimum Stile Width

4-1/2"
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Wide (Standard)
Strikes

flush-mounted 790
Usage

Heavy Duty
Warranty

10 Years
ACCENTRA-6000-Series-6210-6170F-Narrow-and-Wide-Stile-SVR-Installation-Instructions ACCENTRA-626F-Trim-for-1500-1800-2100-and-7000-Series-Wood-and-Metal-Doors-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device
