Product Overview

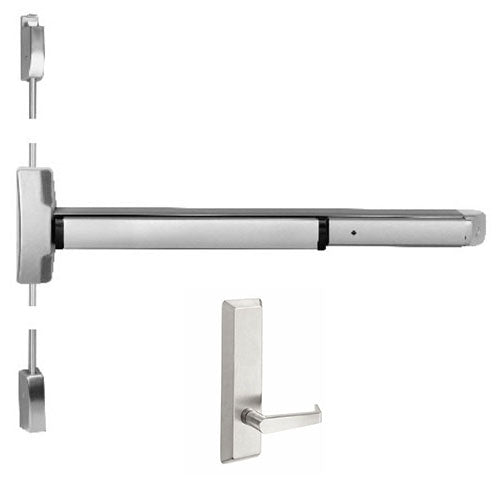

Accentra (formerly Yale) 6170/6170F Surface Vertical Rod Exit Device, AU-628F Passage Lever Trim
With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.
- ANSI Function 14 (Passage): Entrance by trim when latchbolt is released by lever. Lever always active, no cylinder.
- Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
- Stylish: Attractive, modern design blends aluminum rail with architectural finishes
- Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
- Secure: Multiple security features provide added resistance against vandalism and authorized entry
AU-628F Lever Trim
- ANSI Function: 14
- AU (Agusta) lever design
- Trim through-bolts to exit device for strength
- Field reversible – ships as RHR
- Dimensions: 3″ x 10-1/4″ x 13/16″
- Projection: 2-5/8″
| ANSI/BHMA Standard |
Certified ANSI/BHMA A156.3 Grade 1 |
|---|---|
| Brand |
Accentra (Formerly Yale) |
| Device Type |
Surface Rod Device |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Door Applications |
1-3/4" Metal wood or composite doors |
| Fasteners |
Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware |
| Finish |
BlackStainless Steel |
| Finishes |
BSP Black Suede Powder Coat630 Satin Stainless Steel |
| Fire-Rated |
Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature) |
| Fire Rating |
UL/cUL Listed for use on fire doors up to 3 hours |
| Handing |
Completely Reversible |
| Latchbolt |
3/4" pullman style with auto deadlatching; Bottom 5/8" deadbolt held retracted during door swing |
| Length |
36" (for 30" to 36" Doors)48" (for 42" to 48" Doors) |
| Lever Design |
AU (Augusta) |
| Minimum Stile Width |
4-1/2" |
| Projections |
3-1/4" active 2-1/2" dogged |
| Stile Type |
Wide (Standard) |
| Strikes |
flush-mounted 790 |
| Usage |
Heavy Duty |
| Warranty |
10 Years |
