Accentra (Formerly Yale)

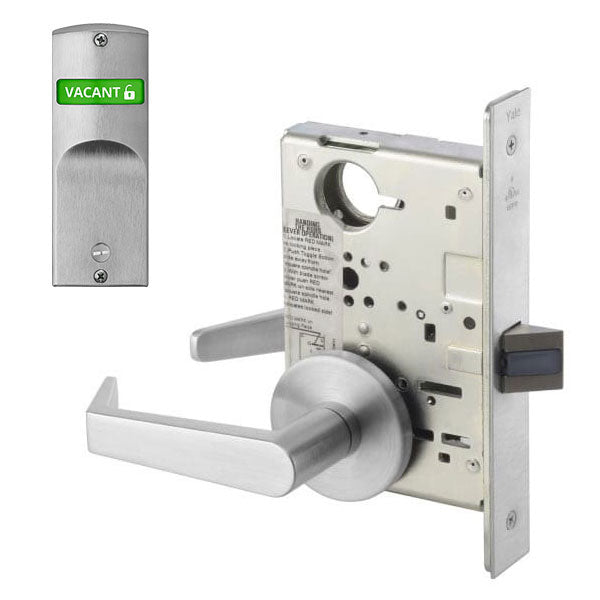

Accentra (Formerly Yale) AUR 8862FL Privacy, Bedroom, or Bath Mortise Lock with Single Indicator Outside, Augusta Lever, Standard Rose

$372.97
This item ships FREE! Usually Ships:  20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI function: F22 – privacy
  • Includes outside occupancy indicator

Available Options:

Clear

Product Overview

Accentra (formerly Yale) AUR8862FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy, Bedroom, or Bath Function, Single Indicator Outside, Sectional Augusta AUR Lever/Rose Trim


Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.
8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

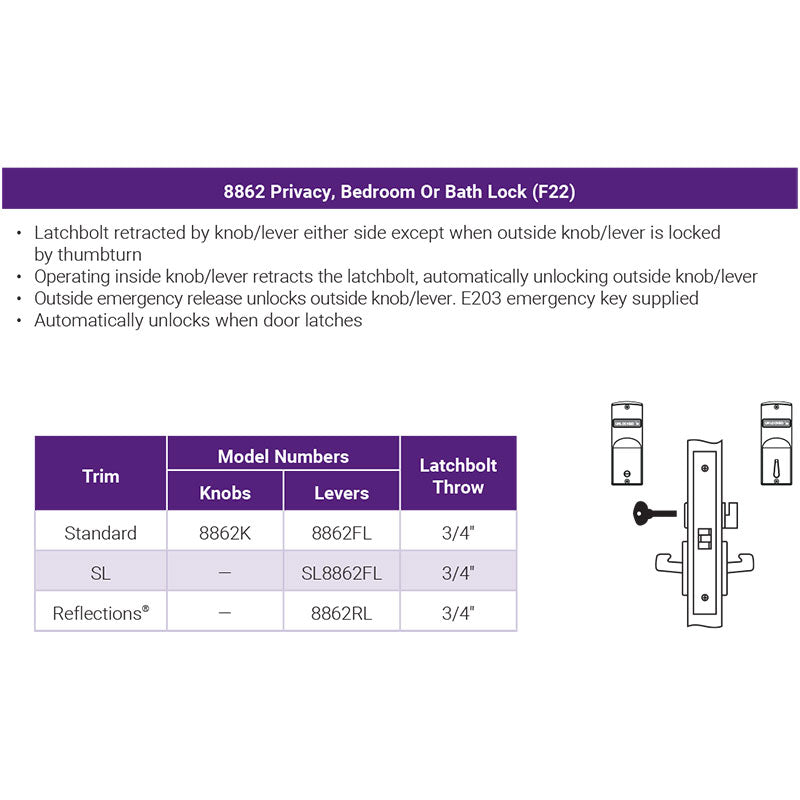

ANSI F22 – Privacy, Bedroom or Bath
  • Latchbolt retracted by knob/lever either side except when outside knob/lever is locked by thumbturn
  • Operating inside knob/lever retracts the latchbolt, automatically unlocking outside knob/lever
  • Outside emergency release unlocks outside knob/lever. E203 emergency key supplied
  • Automatically unlocks when door latches

Features
  • Large viewing indicator window
  • Patented curved design for viewing at multiple angles
  • Highly reflective viewing window for increased safety
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL/cUL fire rated up to 3 hours
  • Windstorm Certified (refer to local codes)
  • 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Field reversible handing

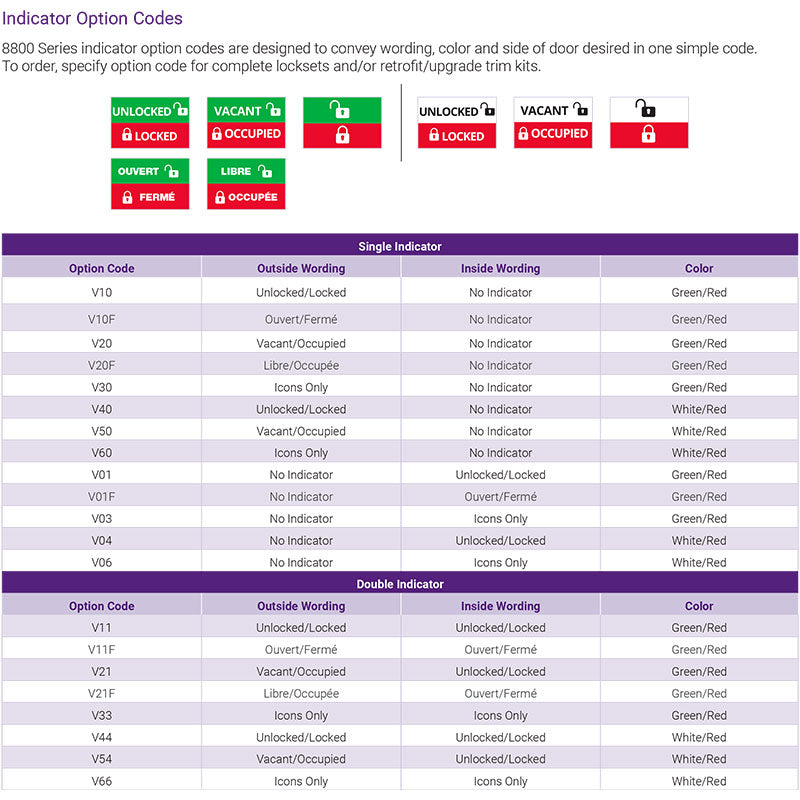

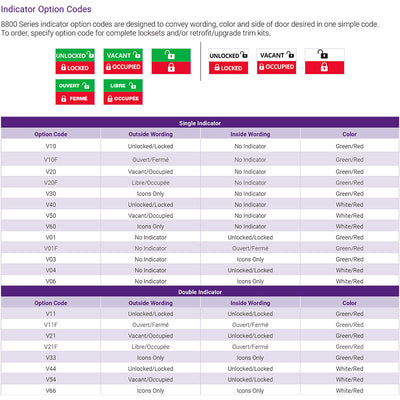

Indicator Option Codes
  • V20 Single Indicator Outside (Vacant/Occupied in Green/Red)
  • V50 Single Indicator Outside (Vacant/Occupied in White/Red)
Applications
  • Restrooms
  • Quiet rooms
  • Nursing mother’s rooms
  • Classroom doors
codes
Brand

Accentra (Formerly Yale)
Finishes

613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat
Lock Function

Privacy with Indicator
ANSI Function

F22
Usage

Heavy Duty
ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000
ADA Compliance

Meets ADA requirements - A117.1 Accessibility Code
Fire Rating

UL and cUL Listed - up to 3 Hours
Handing

Right hand is standard; Reversible in the field
Backset

2-3/4"
Latchbolt

3/4" throw, stainless steel one-piece anti-friction
Strike

4-7/8" Curved Lip Strike with a 1-1/4" lip length
Case

wrought steel, zinc dichromated
Armored Front

8" x 1-1/4"
Door Thickness

1-3/4"
Lever Design

AUR (Augusta)
Warranty

10 Years
