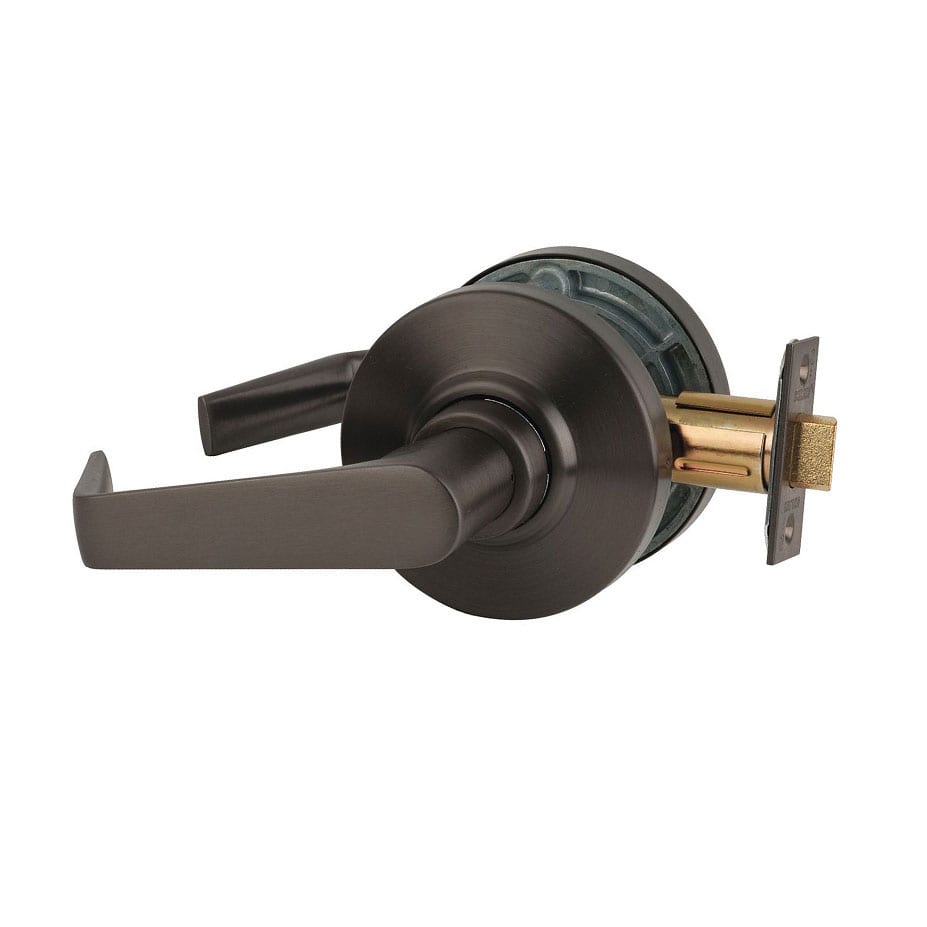

Schlage AL10S SAT (Saturn) Passage Lever

$0.00
Usually Ships:  2-3 Business Days
  • Medium Duty - ANSI Grade 2
  • Discontinued March 2021
  • Replaced by Schlage ALX10 SAT

Available Options:

Clear

Product Overview

Available while supplies last (No returns allowed)

AL Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance in medium-to-high-traffic areas. It is designed for office doors, closets, banks, retail spaces, hotel guest areas and many other applications.

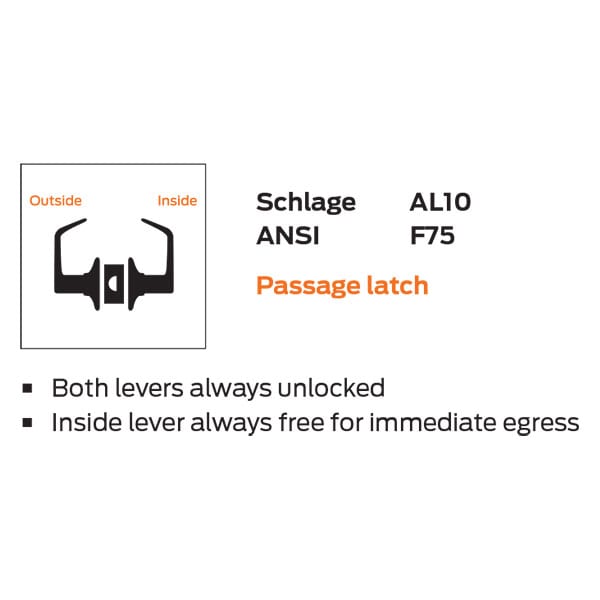

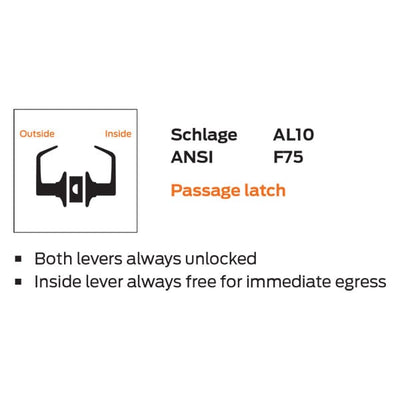

ANSI Function F75 - Both levers always unlocked; inside lever always free for immediate egress

  • Cold-rolled steel, machined and threaded hubs, and locking nuts prevent the loosening of the leverset by securely bolting the chassis to the door
  • Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8" to 1-7/8" thick
  • Exceeds ANSI/BHMA Grade 2 requirements for strength

ANSI/BHMA Standard

Tested and certified under ANSI/BHMA A156.2 Grade 2
Backset

2-3/4"
Brand

Schlage
Door Thickness

1-3/8" to 1-3/4"
Finish

Dark Bronze
Finishes

613 Oil Rubbed Bronze
Fire Rating

UL/cUL listed up to 3 Hours - UL symbol on the latch front
Handing

Non-Handed
Latch

1/2" throw - 1-1/8" x 2-1/4" face

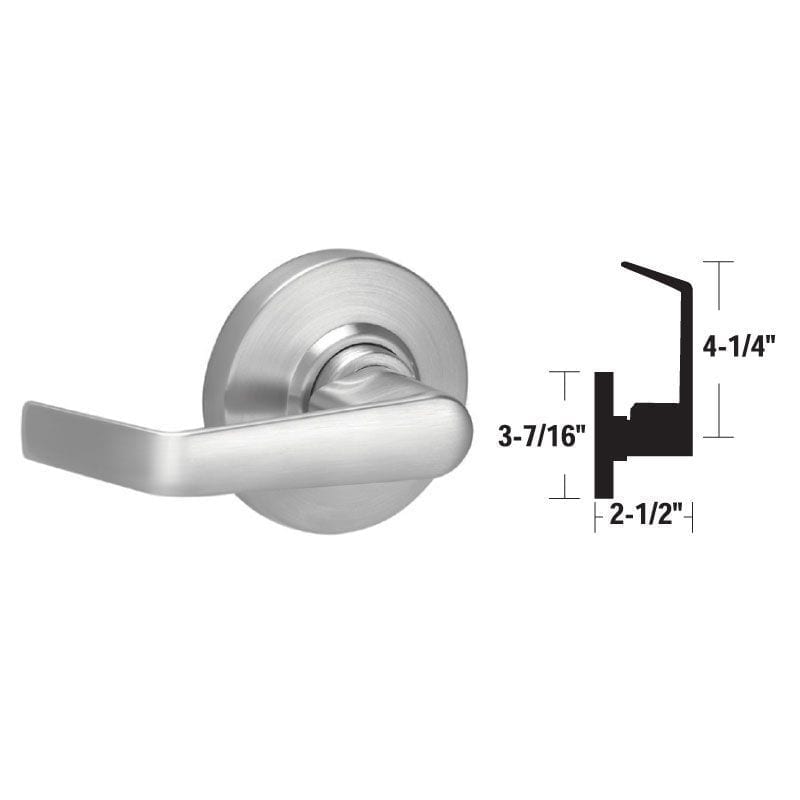

Lever Design

SAT (Saturn)
Lock Function

Passage
Strike

4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Usage

Medium Duty
Warranty

Three year limited
Schlage_AL-Series_Installation_Instructions How to Install Von Duprin 98/99 Rim Exit Device
