Select SL11 HD Heavy Duty Concealed Geared Continuous Hinge

$198.73
Usually Ships:  2-3 Business Days
  • Flush mounted (no door inset)
  • UL listed, fire-rated
  • Supports weights up to 600lbs

Available Options:

Clear

Product Overview

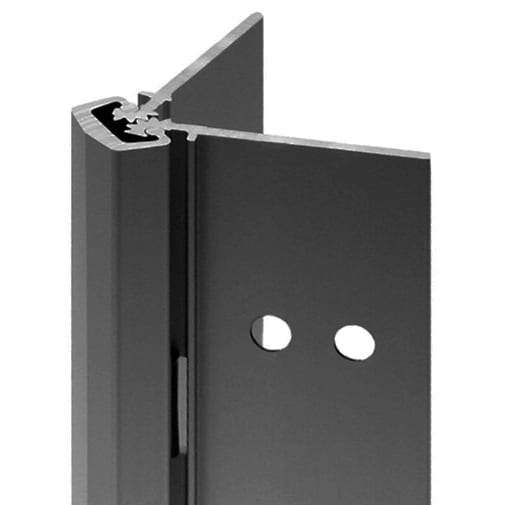

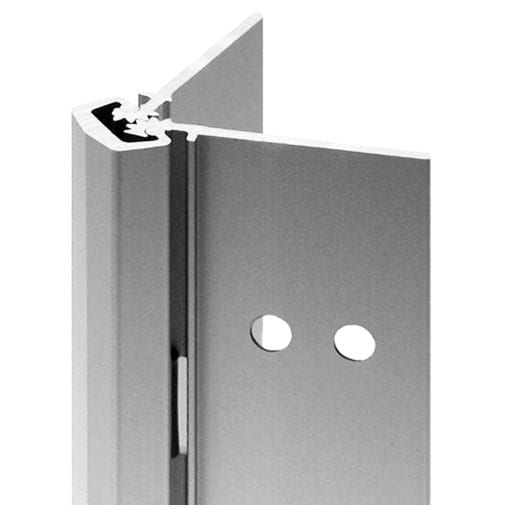

Concealed edge mount architectural grade aluminum hinges. No mortise required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. The revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure problems.

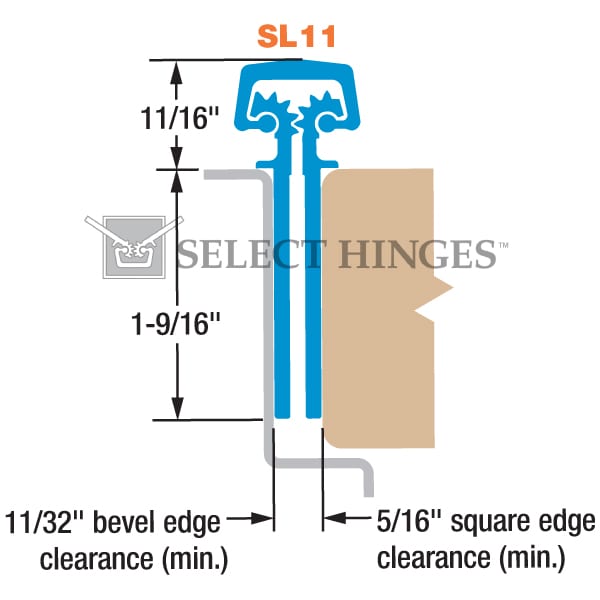

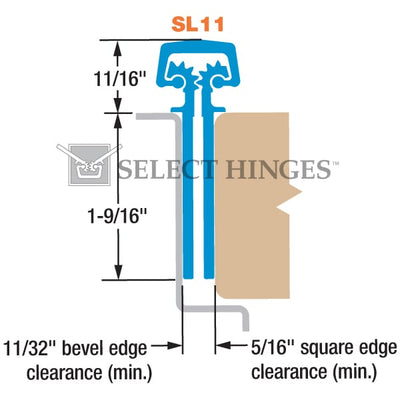

Flush mounted (no door inset). For 1-3/4" doors.

SL11 HD geared continuous hinges are BHMA Grade 1 certified.

  • Lifetime lubrication
  • Anodized after machining
  • Consistent templating

ANSI/BHMA Standard

ANSI/BHMA A156.26-2006 Grade 1
Brand

Select
Buy American Act Compliance

Meets Buy Amercian Act - Made in USA
Continuous Hinge Type

Full Mortise (Concealed)
Finish

BlackDark BronzeAnodized Aluminum
Finishes

Black Anodized AluminumDark Bronze Anodized AluminumClear Anodized Aluminum
Fire Rating

All SELECT hinges have been UL® tested and listed to 90-minute Fire Rating Standards without fire pins or studs—at no extra cost
Length

79" (for 6'8" door)95" (for 8'0" door)83" (for 7'0" door)85" (for 7'2" Door)
Material

Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
Usage

Heavy Duty
