Design Hardware D2-D Double Cylinder Deadbolt Lock

$66.78
Usually Ships:  3-5 Business Days
  • Meets ANSI A156.2, Grade 2 Standards
  • Double Cylinder (key on both sides)
  • ADA Compliant, Fire-Rated

Available Options:

Clear

Product Overview

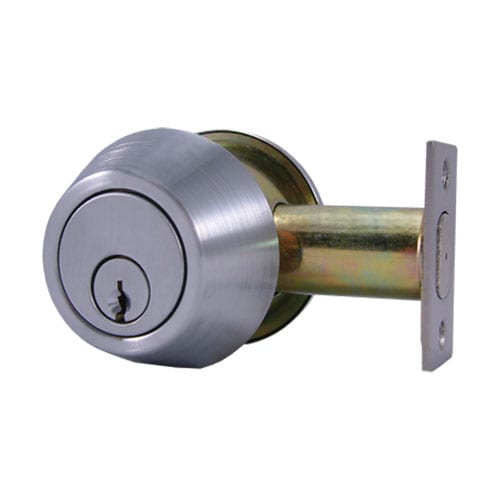

Design Hardware D2-D Double Cylinder Deadbolt Lock, 2-3/4" Backset, Schlage C Keyway


Design Hardware delivers outstanding field performance with the highest quality selection of commercial door hardware.
  • ANSI E21412 - Deadbolt thrown or retracted by key from either side. Bolt automatically deadlocks when fully thrown.
  • ANSI: Meets & Exceeds ANSI – A156.2, Grade 2 Standards
  • UL Listings: UL Listed for “A” Label 3 Hour Fire Doors
  • ADA Compliance: 2″ ADA Thumbturn Meets ADA & ANSI A117.1 accessibility codes
Brand

Design Hardware
Finishes

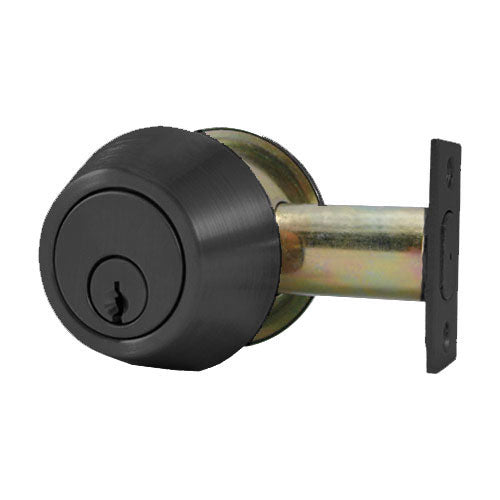

US10B (613) Oil Rubbed Bronze, US19 Matte Black, US26D (626) Satin Chrome
Deadbolt Type

Double Cylinder
ANSI Function

E21412
ANSI Grade

Meets & exceeds ANSI – A156.2, Grade 2 standards
Usage

Medium Duty
Cylinder & Keys

6-pin conventional, keyed different, with 2 keys
Keyway

Schlage C Keyway
Bolt

1" throw bolt, 1-1/8" x 2-1/4" square corner face plate
Backset

2-3/4"
Strike

1-1/8” x 2-3/4“ square corner
Fire Rating

UL Listed for “A” Label 3 Hour Fire Doors
Door Thickness

1-3/4"
