LCN

LCN 6440 COMPACT Low Energy Auto Operator Module Kit (Conversion Kit Only)

$838.03
This item ships FREE! Usually Ships:  1-2 Business Days
  • Conversion kit only
  • For existing 4040XP Series closer cylinder
  • For doors up to 185 lbs.

Available Options:

Clear

Product Overview

LCN 6440 COMPACT Low Energy Auto Operator Module Kit (Conversion Kit Only), Gearmotor Assembly, Mounting Plate and Screws, Plastic Cover, Power Supply, Door Loop, 30' Copper Wire

A simpler solution for touchless access and accessible operation

The LCN 6400 COMPACT™ Series low-energy operator is a simple and cost-effective solution that enables facilities to automate more openings for touchless access and accessible operation. The modular design is unique and allows the reuse of an existing LCN 4040XP Series mechanical closer. The electrified module connects with a mounting plate and just four screws and drives open the mechanical closer. The simplicity of this solution reduces the cost, labor, and complexity required to automate an opening.

  • 24V input for safe door-mount applications
  • Compatible with 3 different 4040XP mounting configurations
  • Motor gear box mounts directly onto standard 4040XP Series mechanical closer with just 4 screws
  • Configurable power input to allow for simple wall plug-in or external power supply
  • Compact user interface for electronic feature adjustments
  • Adjustments via mechanical closer to meet closing force preferences
  • Certified to UL 10C, UL 325 and UL 228
  • Certified to ANSI Standard A156.19
  • Compliant with ANSI Standard A117.1

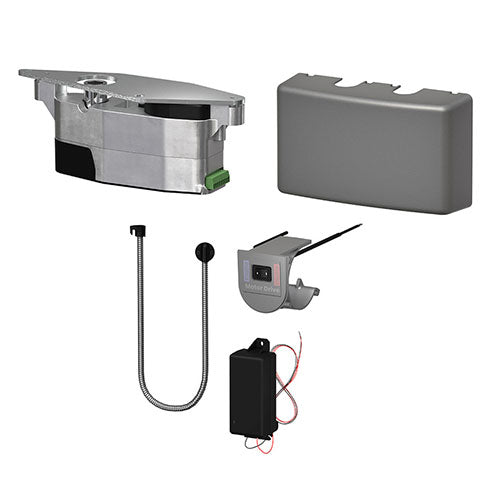

Components Included

  • Gearmotor assembly, mounting plate, and screws
  • Cover and switch insert
  • Wall adapter
  • Door loop
  • 30 ft of copper wire

Compatibility

  • Interior openings only
  • Existing 4040XP Series Closer cylinders, including delayed action, with standard non-hold open arms
  • REG or RwPA arm only
  • Any hardwired actuator
  • Any RF receiver and actuator/transmitter in the LCN 8310 Series
ANSI/BHMA Standard

ANSI/BHMA A156.19 certified
Brand

LCN
Door Application

Interior metal and wood doors
Door Weight

up to 185 lbs.
Finish

AluminumDark Bronze
Finishes

695 Dark Bronze689 Aluminum
Handing

Non-Handed
Mounting

Surface Mount - Pull SideSurface Mount - Push Side
Usage

Medium Duty
