Accentra (Formerly Yale)

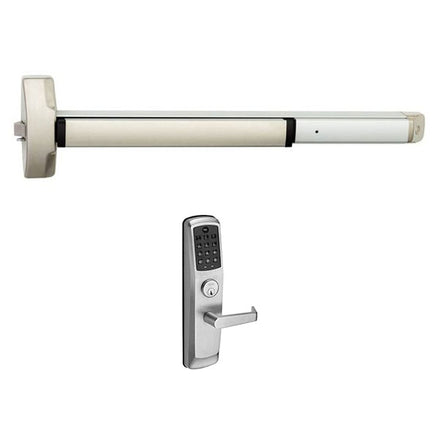

Accentra (Formerly Yale) 6100 x AU-NTT613-NR Panic Rim Exit Device with nexTouch PushButton Lever

$1,210.11
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty - ANSI/BHMA Grade-1 Certified
  • Includes electronic NTT613 pushbutton lever
  • Up to 500 unique PIN codes, mechanical key override

Available Options:

Clear

Product Overview

Accentra (formerly Yale) 6100/6100F Rim Exit Device, AU-NTT613-NR nexTouch PushButton Rim Exit Device Trim

With its robust, modern design and smooth, quiet operation, the 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6100ED(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas.

  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry

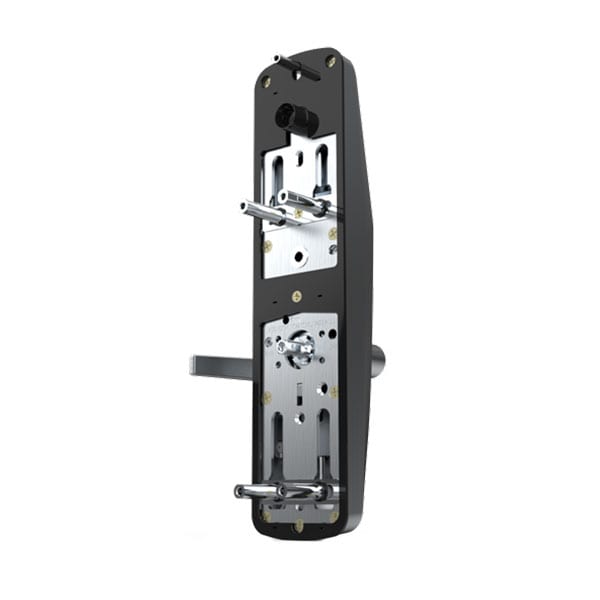

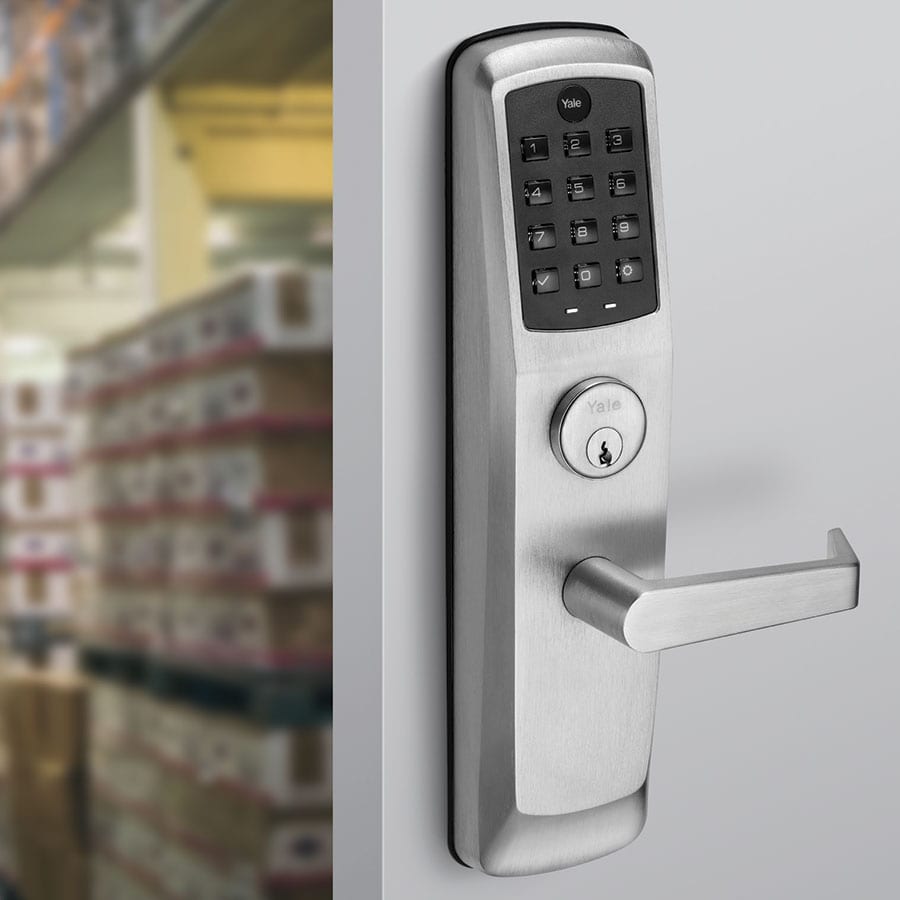

AU-NTT613-NR Keypad Lever Trim

  • Standalone Electronic Rim Exit Device Trim
  • Up to 500 Unique PIN Codes
  • Includes 2153 cylinder
  • Easily Re-handed in the field – Shipped as RHR
  • Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked.
  • Mechanical Key Override (key override unlocks the outside lever only)
  • 9V battery power backup prevents lockout even if the batteries fail
  • Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
  • Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
ANSI/BHMA Standard

Certified ANSI/BHMA A156.3 Grade 1
Brand

Accentra (Formerly Yale)
Cylinder

2153 Accentra/Yale E1R Para Keyway
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Door Applications

1-3/4" Metal wood or composite doors
Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware
Finish

Stainless SteelBlack
Finishes

BSP Black Suede Powder Coat630 Stainless Steel Device w/ 626 Satin Chrome Lever
Fire-Rated

Fire-Rated (No Dogging)Non-Fire-Rated (w/ Dogging Feature)
Fire Rating

UL/cUL Listed for use on fire doors up to 3 hours
Handing

Completely Reversible
Latchbolt

3/4" deadlocking stainless steel pullman-type
Length

36" (for 30" to 36" Doors)48" (for 42" to 48" Doors)
Lever Design

AU (Augusta)
Minimum Stile Width

4-1/2"
Power

Battery-operated with low power indicator or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.
Projections

3-1/4" active 2-1/2" dogged
Stile Type

Wide (Standard)
Strike

757F 793 optional (double door application panic only)
Usage

Heavy Duty
ACCENTRA-6000-Series-6100F-6150F-6200-6250-Narrow-and-Wide-Stile-Rim-SquareBolt-Installation-Instructions How to Install Von Duprin 98/99 Rim Exit Device How to Install Von Duprin 98/99 Rim Exit Device
