Design Hardware 1000R x LE-08A Rim Exit Device with Escutcheon Passage Lever

$516.93
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty - ANSI A156.3 Grade 1 Standards
  • For use w/ 1-3/4" Metal and Wood Doors

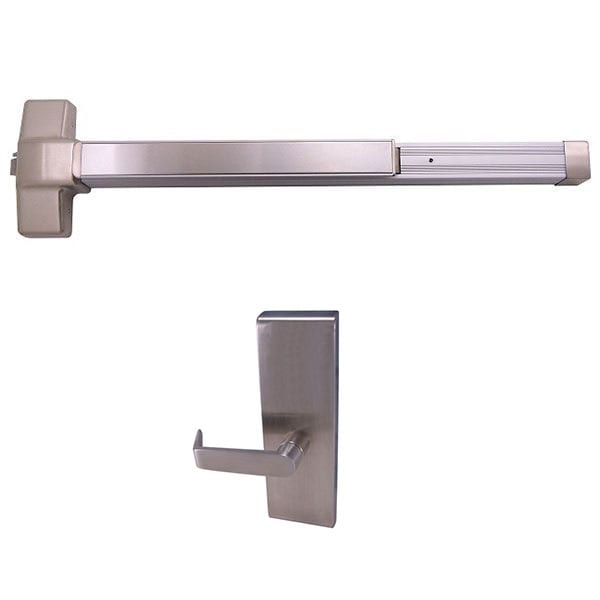

  • 1000R with LE-08A Escutcheon Passage Lever Trim

Available Options:

Clear

Product Overview

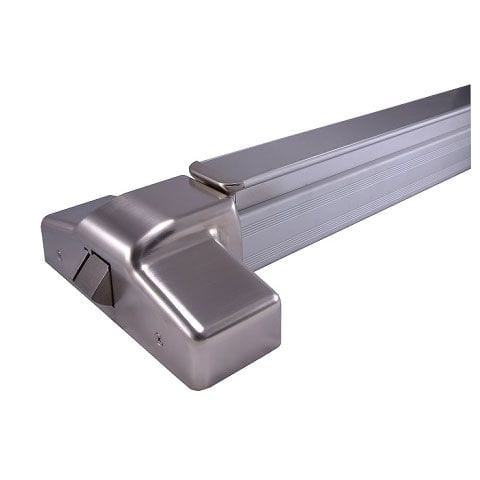

The 1000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act - providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The LE trim is the heaviest duty trim Design Hardware offers. It is equipped with a unique tailpiece (actuator shaft) that is a direct drive design putting all torque straight into the device. This LE trim also features a field-friendly handing solution.

  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

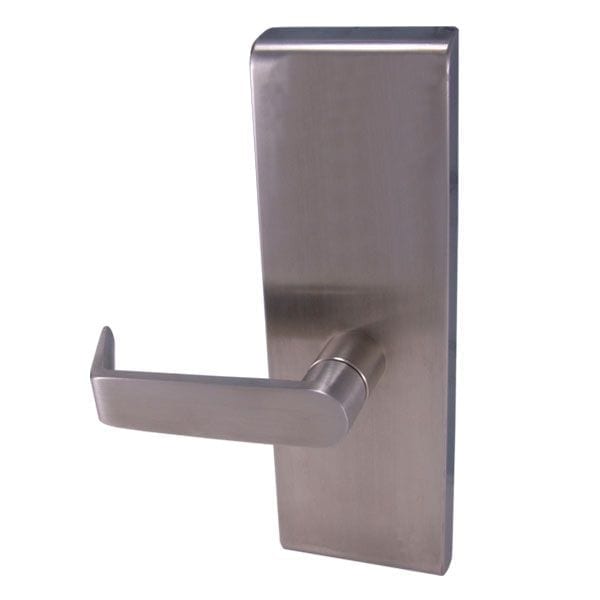

LE-08A Escutcheon Passage Lever Trim

  • Passage Function - Levers Always Free and Open
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard
ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Brand

Design Hardware
Construction

Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
Dogging Feature

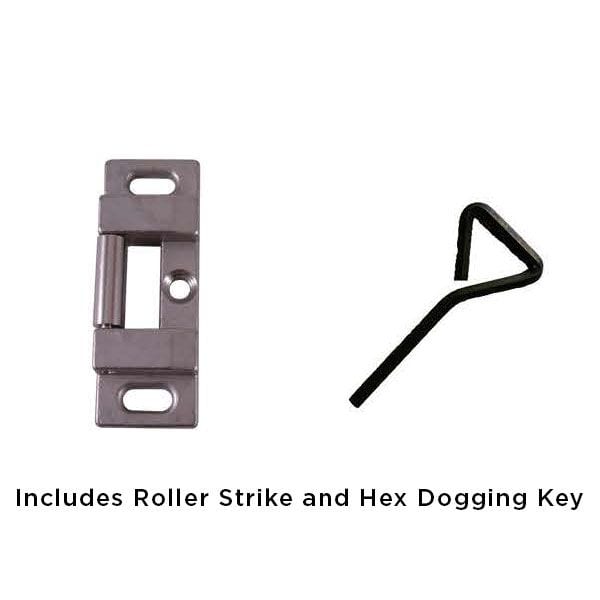

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Dark BronzeStainless Steel
Fire Rating

1000R Non-Rated - F1000R 3 Hour UL Listed
Handing

Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

42" (for doors 3'4" to 4'0")33" (for doors 2'8" to 3'0")
Model

F1000R - 3 Hour Fire-Rated Device (No Dogging)1000R - w/ Dogging Feature
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

LE-08A (Escutcheon Passage Lever)
Usage

Heavy Duty
