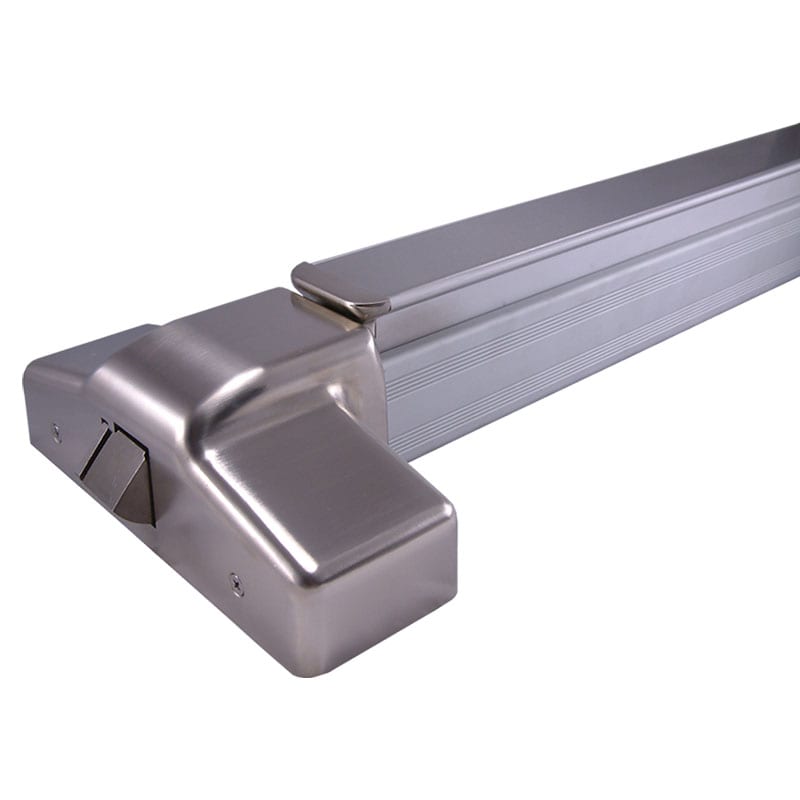

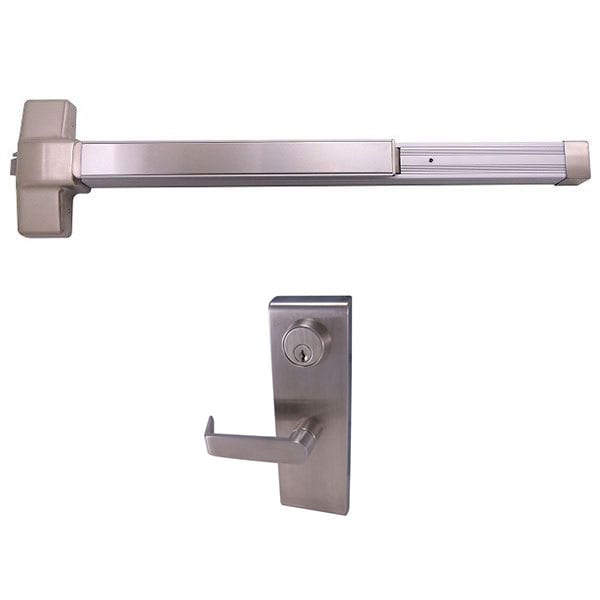

Product Overview
The 1000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act - providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The LE trim is the heaviest duty trim Design Hardware offers. It is equipped with a unique tailpiece (actuator shaft) that is a direct drive design putting all torque straight into the device. This LE trim also features a field-friendly handing solution.
- UL Listing: UL Listed for Panic Exit Hardware
- (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
- Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
- Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

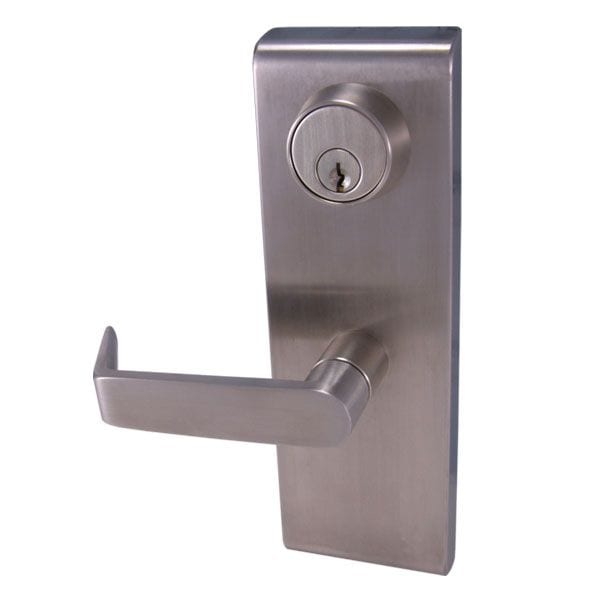

LE-08 Escutcheon Lever Trim
- Includes Mortise Cylinder
- Entry Function - Convertible to Night Latch
- Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
- Thru bolts to head of exit device
- 5″ Solid Stainless Steel lever – 2-7/8″ total projection
- Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
- Door Thickness: 1-3/4″ standard
| ANSI Grade |
Meets & Exceeds ANSI A156.3 – Grade 1 Standards |
|---|---|
| Brand |
Design Hardware |
| Construction |
Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis |
| Cylinder |
1 1/8″ Mortise cylinder with std. cam (included) – 6 Pin Brass C Kwy with 2 Keys |
| Dogging Feature |
Hex key dogging standard on non-fired-rated devices |
| Fasteners |
Wood Machine & Self Tapping Machine Screws |
| Finish |
Stainless SteelDark Bronze |
| Fire Rating |
1000R Non-Rated - F1000R 3 Hour UL Listed |
| Handing |
Completely Reversible |
| Keyway |
Schlage C Keyway |
| Latchbolt |
Deadlocking latchbolt with 5/8″ projection |
| Length |
42" (for doors 3'4" to 4'0")33" (for doors 2'8" to 3'0") |
| Model |
F1000R - 3 Hour Fire-Rated Device (No Dogging)1000R - w/ Dogging Feature |
| Projections |
3-3/8″ Undogged – 2-13/16″ Dogged (Depressed) |
| Stile Type |
Wide (Standard) |
| Strike |
Roller Strike with 5/8″ projection & 1/8″ shim |
| Trim |
LE-08 - Lever Entry Function (Convertible to Night Latch) |
| Usage |
Heavy Duty |
