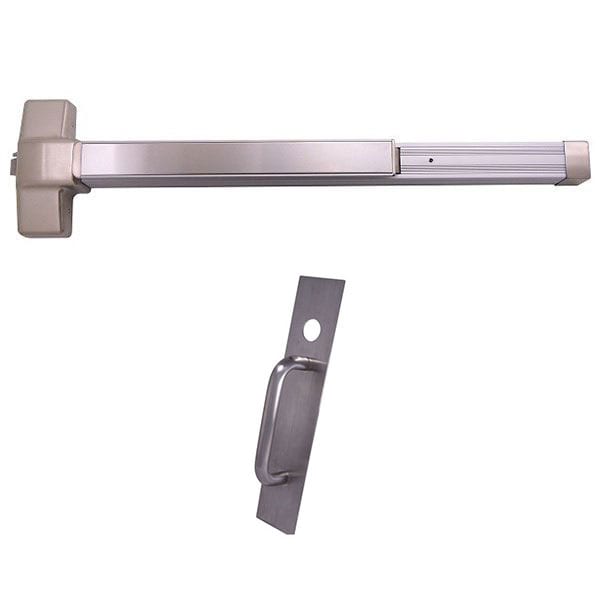

Design Hardware 1000R x 2P-03NL Rim Exit Device with Nightlatch Pull

$449.25
This item ships FREE! Usually Ships:  1-2 Business Days
  • Heavy Duty, ANSI A156.3 Grade 1 standards
  • For use with 1-3/4" thick metal or wood doors
  • 1000R with 2P-03NL pull trim (key retracts latch)

Available Options:

Clear

Product Overview

The 1000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act - providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The 2P trim provides a clean, traditional look. This trim is an economical choice, and an ideal choice for high use doors that will be dogged down for push/pull applications.

  • US32D - Stainless Steel Finish
  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

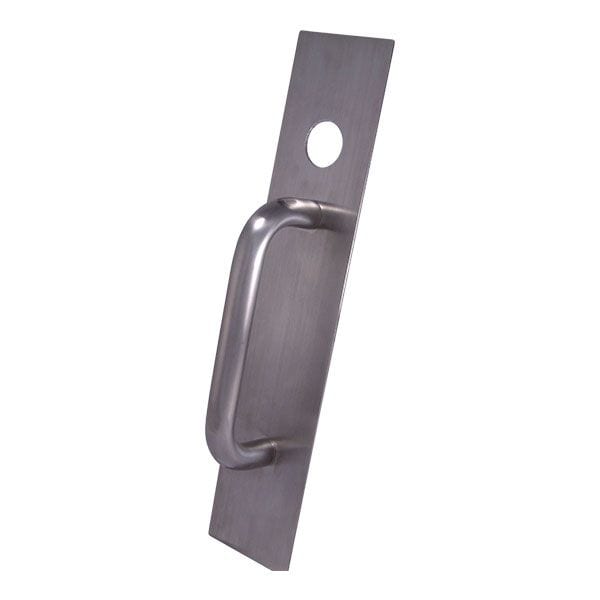

2P-03NL Pull w/ Cylinder Hole

  • Night latch Function - Key Retracts Latch
  • Thru bolts to head of exit device
  • Stainless Steel Construction
  • Pull Plate: 3″ Wide x 13-7/8″ Height x 1/16″ thick
  • Pull: 3/4″ diameter hollow x 6-1/4″ ctc x 27/16″ projection
ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards
Brand

Design Hardware
Construction

Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis
Cylinder

1-1/8" Rim Cylinder (Sold Separately)
Dogging Feature

Hex key dogging standard on non-fired-rated devices
Fasteners

Wood Machine & Self Tapping Machine Screws
Finish

Stainless Steel
Fire Rating

1000R Non-Rated - F1000R 3 Hour UL Listed
Handing

Completely Reversible
Latchbolt

Deadlocking latchbolt with 5/8″ projection
Length

42" (for doors 3'4" to 4'0")33" (for doors 2'8" to 3'0")
Model

F1000R - 3 Hour Fire-Rated Device (No Dogging)1000R - w/ Dogging Feature
Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)
Stile Type

Wide (Standard)
Strike

Roller Strike with 5/8″ projection & 1/8″ shim
Trim

2P-03NL (Night Latch Pull Trim)
Usage

Heavy Duty
1000R-Installation-Instructions 1000R-Template F1000R-Installation-Instructions F1000R-Template 1000-Pull-Trim-Instructions-Standard 1000-Pull-Trim-Instructions-161-Prep-Door How to Install Von Duprin 98/99 Rim Exit Device
