Hager

Hager 4501R MLR Rim Exit Device with Motorized Electric Latch Retraction

$1,289.76
This item ships FREE! Usually Ships:  3-5 Business Days
  • Heavy-Duty, BHMA/ANSI Certified Grade-1
  • Motor Driven Electric Latch Retraction
  • Exit only (trim sold separately)

Available Options:

Clear

Product Overview

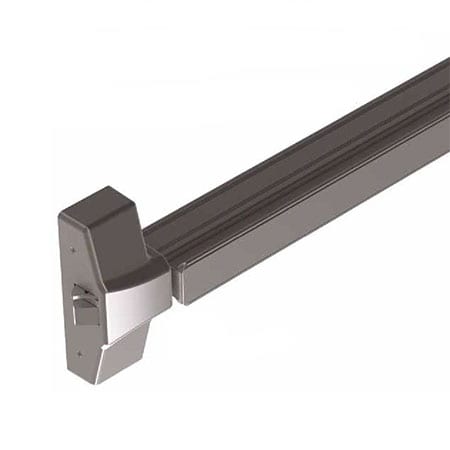

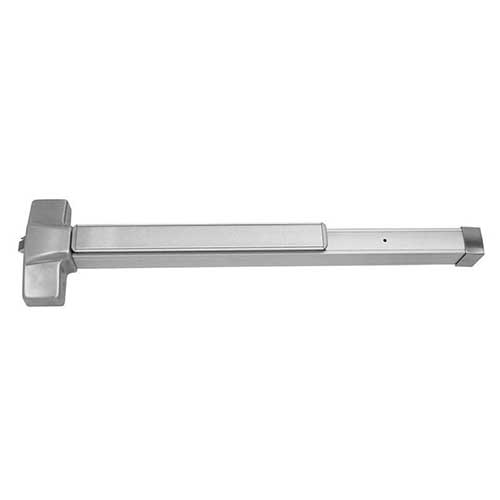

Hager 4500 Series Grade-1 Rim Exit Device with Motorized Electric Latch Retraction, Exit Only


PROVIDES SIMULTANEOUS ELECTRIC LATCH RETRACTION AND DOGGING (PUSH BAR DEPRESSED)
The 4500 Series Exit Devices are BHMA certified Grade 1 and meet Life Safety codes and Fire Safety requirements.
  • Exit Only Device (Hager Exit Device Trim Sold Separately)
  • Motor Driven Electric Latch Retraction
  • 1 AMP in rush @ 24 VDC +/- 2 V
  • Filtered and Regulated Power Supply
  • Voltage: 24VDC ±10%
  • Current: 1A MAX Inrush, 400mA MAX Holding
  • Non-polarized leads
A 4500 Exit Device for a 36” door with an MLR can be cut down a maximum of 2” (Minimum door width-34”).
A 4500 Exit Device for a 48” door with an MLR can be cut down a maximum of 8” (Minimum door width-40”).
Brand

Hager
Finishes

US26D (626) Satin Chrome
Length

3'0", 4'0"
ANSI/BHMA Standard

ANSI/BHMA A156.3-2014 Grade 1
Usage

Heavy Duty
Fire Rating

None
Latchbolt

3/4” throw, pullman type with automatic dead-latching, stainless steel
Strike

Stainless steel with roller
Dogging Feature

No Manual Dogging - Electric Latch Retraction
Stile Type

Wide (Standard)
Door Thickness

1-3/4"
Warranty

One-Year Electrified components, Lifetime on mechanical components
