Best 661HD UL Heavy Duty Full Mortise Concealed Continuous Geared Hinge

$245.98

Usually Ships: 5-10 Business Days

Flush mounted (no door inset)
Fire-rated up to 90-minutes
Supports weights up to 450lbs

Available Options:

Clear

Finish
Length

Quantity:

Added to Cart

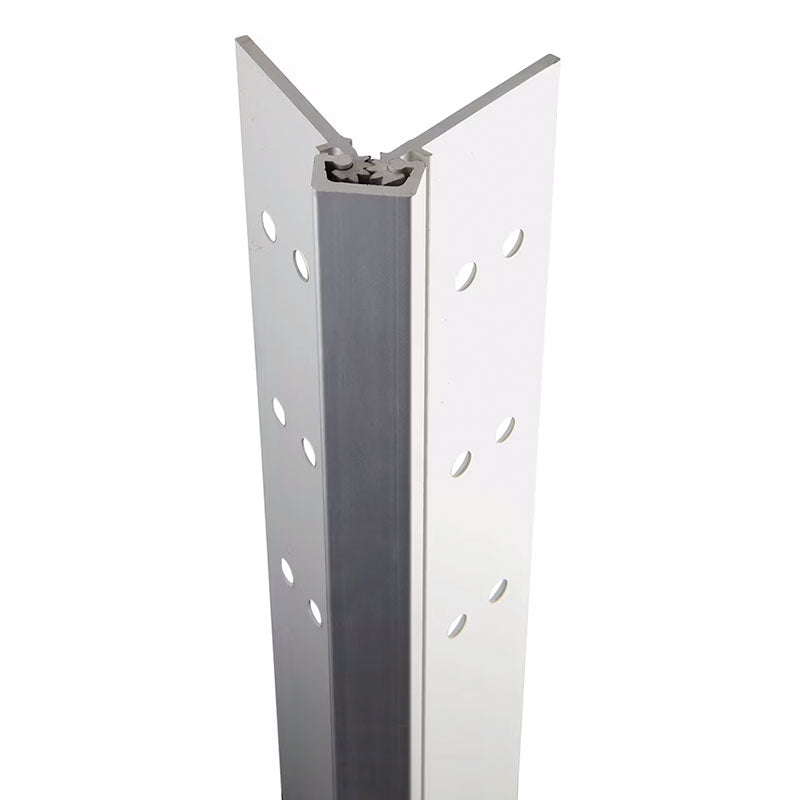

Best (Formerly Stanley) 661HD UL Aluminum Continuous Gear Hinges Full Mortise

Stanley Hinges have been re-branded as Best Hinges. Packaging may change but it’s still the same quality hinge you have relied on for decades from Stanley. Depending on stock levels and availability these hinges may be shipped with the Stanley or Best packaging.
Installs in minutes – Lasts a lifetime
BEST Aluminum Continuous Geared Hinges are as tough and practical as they are sleek and attractive.
Made of 6063-T6 aluminum, they are designed and built to last for the life of the building. “Form follows function” bearing channel is pleasing to the eye and applauded by architects.
Engineered with a minimum number of fasteners reduces installation time without sacrificing performance.
All models conform to ANSI/BHMA A156-26-1996, Grade 1 Standard. Out of the box has a 90-min fire rating for metal doors up to 4′ x 10′

No door inset, flush mount
For use on 1-3/4" doors only
Distributes door weight and stress along the full length of door and frame
No misaligned pivot points of individual hinges, typically no addition reinforcement required
48" door width maximum
Clear aluminum, dark bronze and black anodized finishes
Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
Supports doors up to 450 lbs.
Hinge covered by limited lifetime warranty for the life of the building
Standard Lengths: 79", 83", 85", *95", *120"
Approved for use on metal swinging type fire doors rated up to and including 90 minutes
Approved for use on wood swinging type fire doors rated up to and including 60 minutes

*Oversize handling fee applies (added at checkout)

Brand	Best
Finish	Anodized Aluminum, Black, Dark Bronze
Length	120" (for 10'0" door), 79" (for 6'8" door), 83" (for 7'0" door), 85" (for 7'2" Door), 95" (for 8'0" door)
Continuous Hinge Type	Full Mortise (Concealed)
ANSI/BHMA Standard	ANSI/BHMA A156.26-2017 Certified
Usage	Heavy Duty
Fire Rating	Approved for use on metal swinging type fire doors rated up to and including 90 minutes, Wood doors up to 60 minutes
Material	Aluminum
Fasteners	12-24 x 3/4" undercut self-drilling, thread-forming tek machine screw
Buy American Act Compliance	Meets Buy Amercian Act - Made in USA
